Electric hospital bed
fcewdc

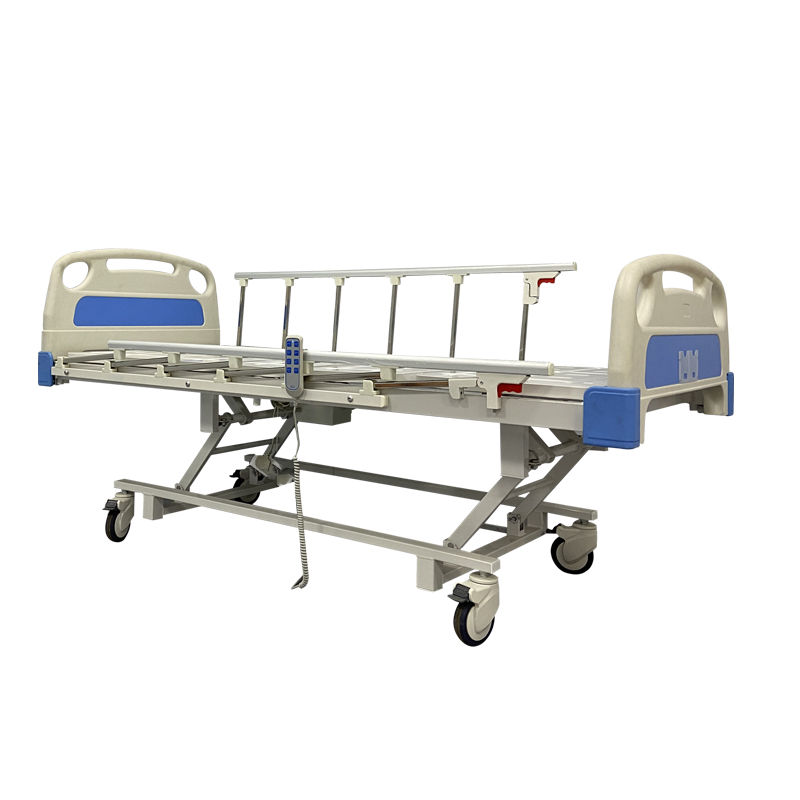

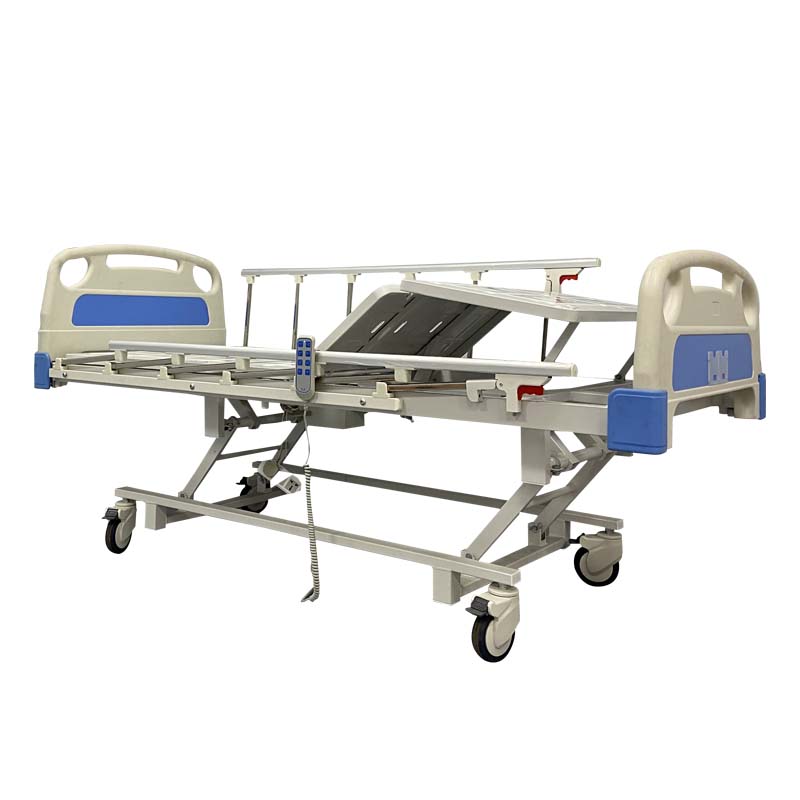

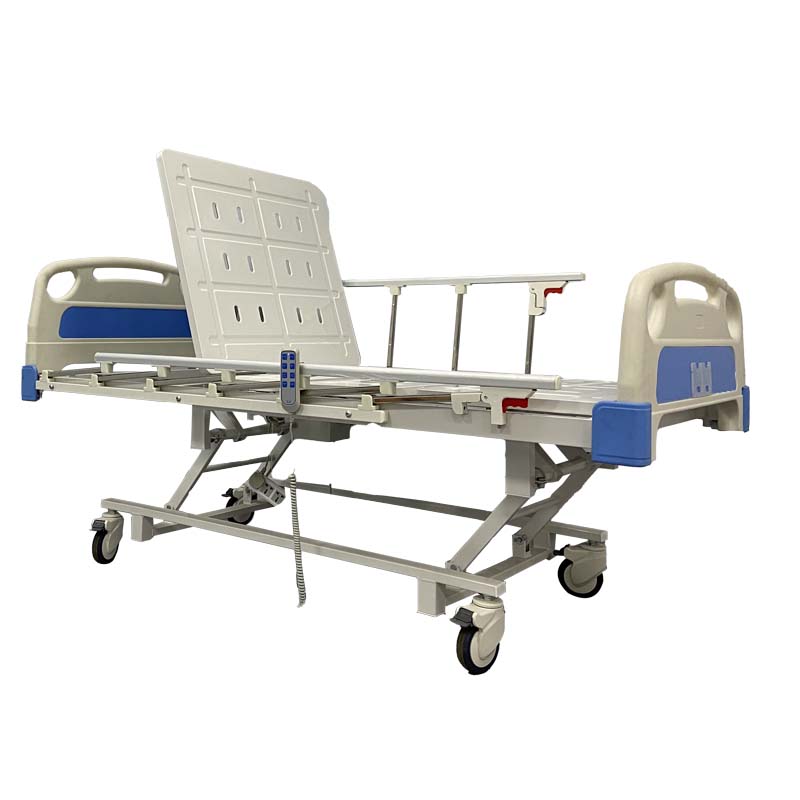

YK-E301 Electric Three-Function Care Bed

Size

►Size: 2120*970*260-680mm(L*W*H)

Function

►HI-LOW: 260-680mm
►Back section: 0-80°(±5°)
►Knee section: 0-40°(±5°) )         Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
►4 pcs sleeping Platforms
►Detachable ABS foot and head boards, blue cover color, with patient record holder
►2pcs  detachable Aluminum side rails with 6pcs aluminum tube ,up and down ,with automatic lock to  protect the patient not fall down from the bed

►Quitet and robust electric actuators provide
reliable operation
►4 pcs individual  lockable   castors at 4 corners, diameter 125mm
►Motor brand: JIECANG  (3 motors,1 handset, 1 control box)
►Bearing Capacity:180kgs<working>,270kgs<not working>
►Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Specifications:

Name

Electric Three function Hospital Bed

Item No.

YK-E301

Outside size

1980 *970*300-680mm

Inside size of mattress base

L1950*W840mm

warranty

one year after shipment

Head and foot board

Detachable ABS Head & foot board

Side rail

1pcs Aluminum side rail

Motor brand

Timotion/Jiecang

Motor system

1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor,1pc remote ,1pc control box.one plug.

Castors

5",individual lock system castors,

Urine hooks

Urine hooks by steel chrome and Plastic dipping together

Approval

ISO13485;CE

Raw material

Steel and ABS

Options

Dining Table; Mattress, Bedside cabinet.

Safe working load

The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 250kgs.



Functions:

Back-rest lifting

0-75°(±2%) by Remote

Knee-rest lifting

0-45°(±2%) by Remote

Height adjustable

300-680mm by Remote



Standard Accessories:

Head & foot board

1set

Guardrails

2pcs

Wheels

4pcs

Motors

3pcs

Remote

1pc

Urine hooks

4pcs

I.V. drip holes

4pcs

I.V. pole

1pc

Features   :

NAME: Electric three function ultra low bed
This Three Function Electric Bed,lowest height 260mm; save space for shipping. one container 40hq loading 112pcs
for saudi arabia market ,we also get mdma can import ,motor can optional: jiecang, junesun,timotion.

The carefully designed for patients during their treatment. The head and foot board can be removed; The side rails are made by aluminum side board. And the gap between two side board is according to the international standard. All the position is controlled by electric ,use a remote to control all the function. This will provide long use life of cranks. With 4 pcs castors with central brakes, this is convenient for transportation.

1)4 pcs sleeping Platforms
2)Detachable ABS foot and head boards, blue cover color, with patient record holder
3) 2pcs  detachable Aluminum side rails with 6pcs aluminum tube ,up and down ,with automatic lock to  protect the patient not fall down from the bed
4)Quiet and robust electric actuators providereliable operation
5)4 pcs individual  lockable   castors at 4 corners, diameter 125mm
6)Bearing Capacity: 250KG
7)Timotion motor  (3 motors,1 handset, 1 control box)
8)Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes



Name Electric Three function Hospital Bed
Item No. YK-E301
Outside size L2120×W970×H270-680mm
Inside size of mattress base L1950*W840mm
warranty one year after shipment
Head and foot board Detachable ABS Head & foot board
Side rail 1pcs Aluminum side rail
Motor brand Timotion/Jiecang/junesun
Motor system 1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor,
1pc remote ,1pc control box.one plug.
Castors 5",individual lock system castors,
Urine hooks Urine hooks by steel chrome and Plastic dipping together
Approval ISO13485;CE,mdma
Raw material Steel and ABS
Options  Dining Table; Mattress, Bedside cabinet.
Safe working load The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 250kgs.


Function

Back-rest lifting 0-75°(±2%) by Remote
Knee-rest lifting 0-45°(±2%) by Remote
Height adjustable H260-680mm by Remote


Standard Accessories:

Head & foot board 1set
Guardrails 2pcs
Wheels 4pcs
Motors 3pcs
Remote 1pc
Urine hooks 4pcs
I.V. drip holes 4pcs
I.V. pole 1pc
