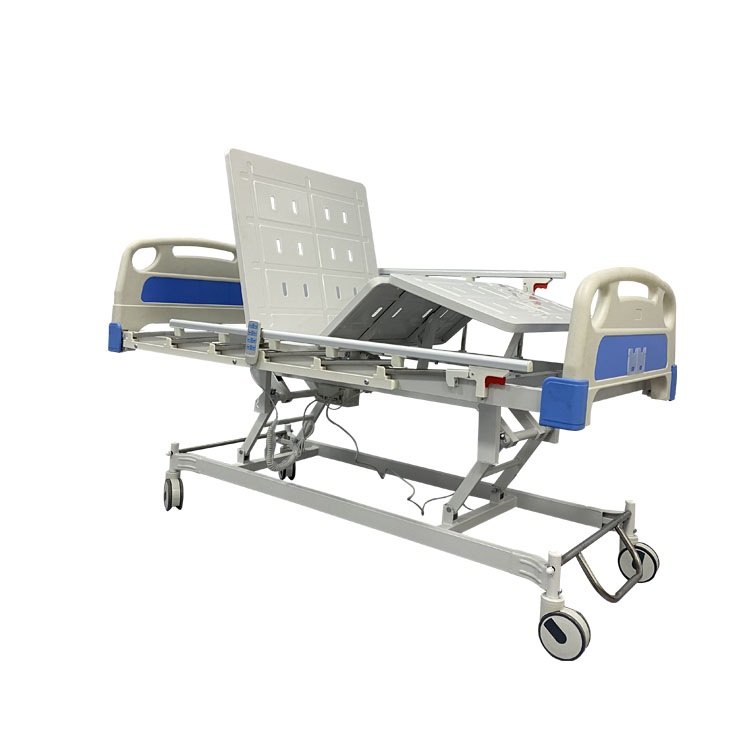

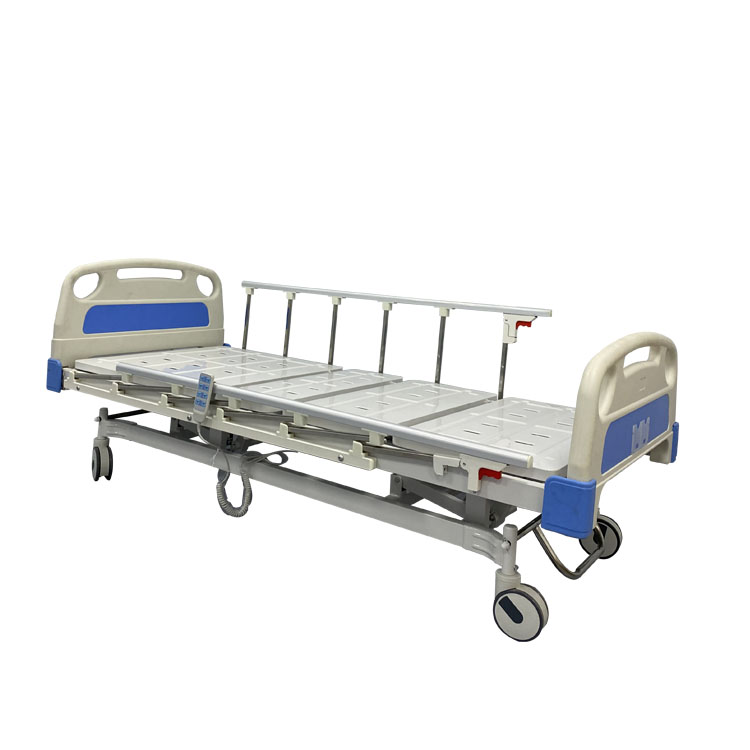

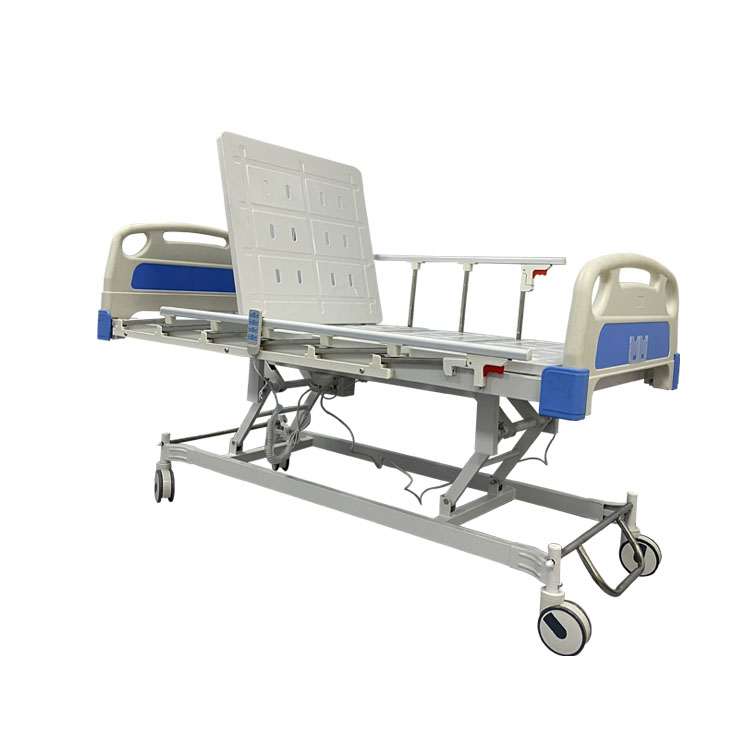

YK-E303 Electric three-function care bed

Features:

This Three Function Electric Bed is carefully designed for patients during their treatment. The head and foot board can be removed for the convenience of patients' transfer. The side rails are made by PP side board. And the gap between two side board is according to the international standard. All the position is controlled by electric ,use a remote to control all the function. This will provide long use life of cranks. With 4 pcs castors with central brakes, this is convenient for transportation.

Size:

2120*970*450-740mm(L*W*H)

Function:

HI-LOW: 450-740mm
Back section: 0-80°(±5°)
Knee section: 0-40°(±5°) Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
4 pcs sleeping Platforms
Detachable ABS foot and head boards, blue cover color, with patient record holder
2pcs detachable Aluminum side rails with 6pcs aluminum tube ,up and down ,with automatic lock to protect the patient not fall down from the bed
Quitet and robust electric actuators provide
reliable operation
4 pcs central lockable castors at 4 corners, diameter 125mm
Motor brand: JIECANG motor(3 motors,1 handset, 1 control box)
Bearing Capacity:180kgs,270kgs
Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Specifications:

Name	Electric Three function Hospital Bed
Item No.	YK-E330
Outside size	1980 970300-680mm
Inside size of mattress base	L1950*W840mm
warranty	one year after shipment
Head and foot board	Detachable ABS Head & foot board
Side rail	1pcs Aluminum side rail
Motor brand	Timotion/Jiecang
Motor system	1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor,1pc remote ,1pc control box.one plug.
Castors	5",individual lock system castors,
Urine hooks	Urine hooks by steel chrome and Plastic dipping together
Approval	ISO13485;CE
Raw material	Steel and ABS
Options	Dining Table; Mattress, Bedside cabinet.
Safe working load	The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 250kgs.

Functions:

Back-rest lifting	0-75°(±2%) by Remote
Knee-rest lifting	0-45°(±2%) by Remote
Height adjustable	300-680mm by Remote

Standard Accessories:

Head & foot board	1set
Guardrails	2pcs
Wheels	4pcs
Motors	3pcs
Remote	1pc
Urine hooks	4pcs
I.V. drip holes	4pcs
I.V. pole	1pc

Professional after-sales service：

100% quality inspection before shipment and issue test report.
Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
Strong research and development capabilities, support customization.
The monthly production and delivery capacity is more than 3000 pieces.
More than 10 years of sales experience, to provide you with professional advice.
Integrity first, any product quality problems, full compensation unconditionally.
One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
The price of electric bed has an absolute advantage.
