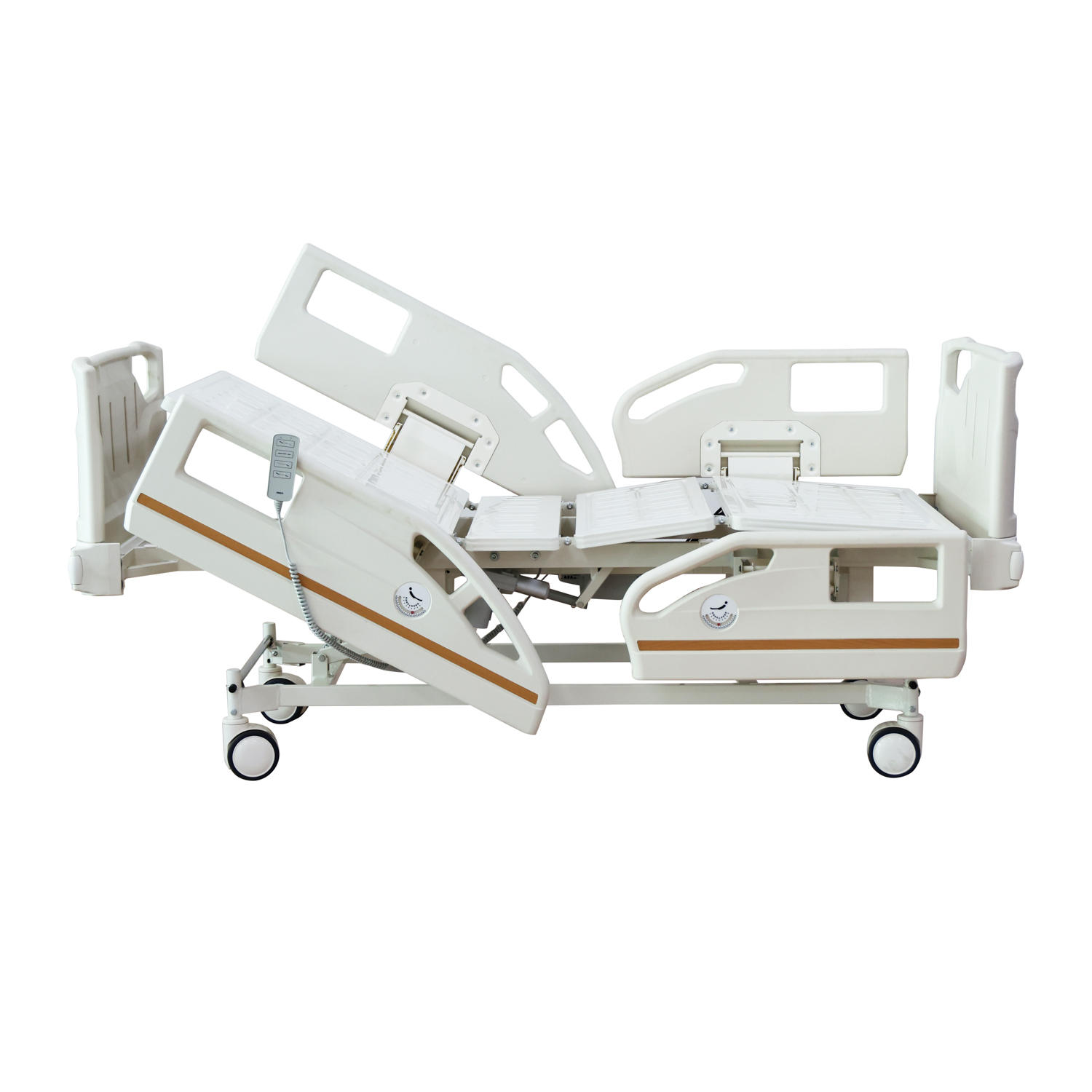

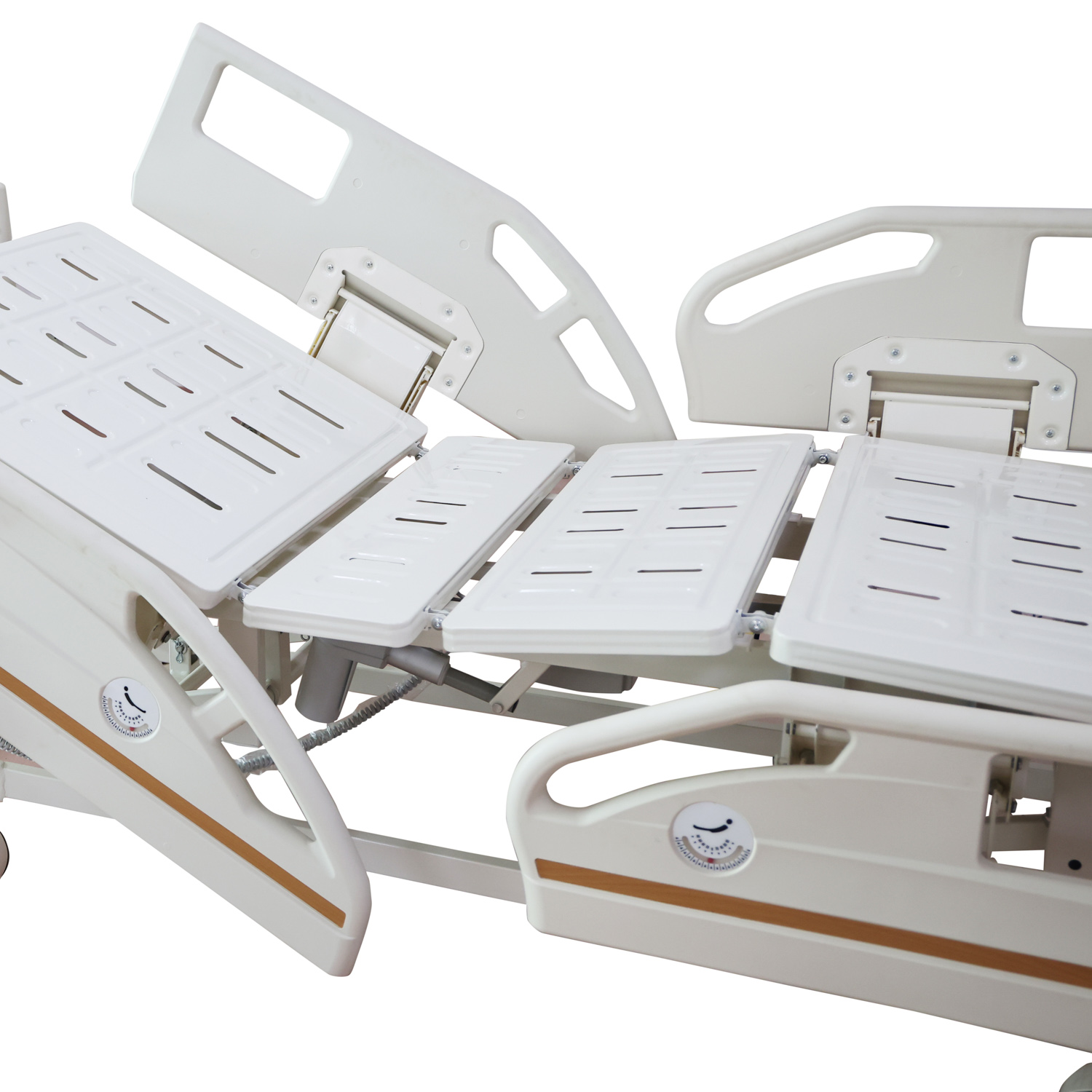

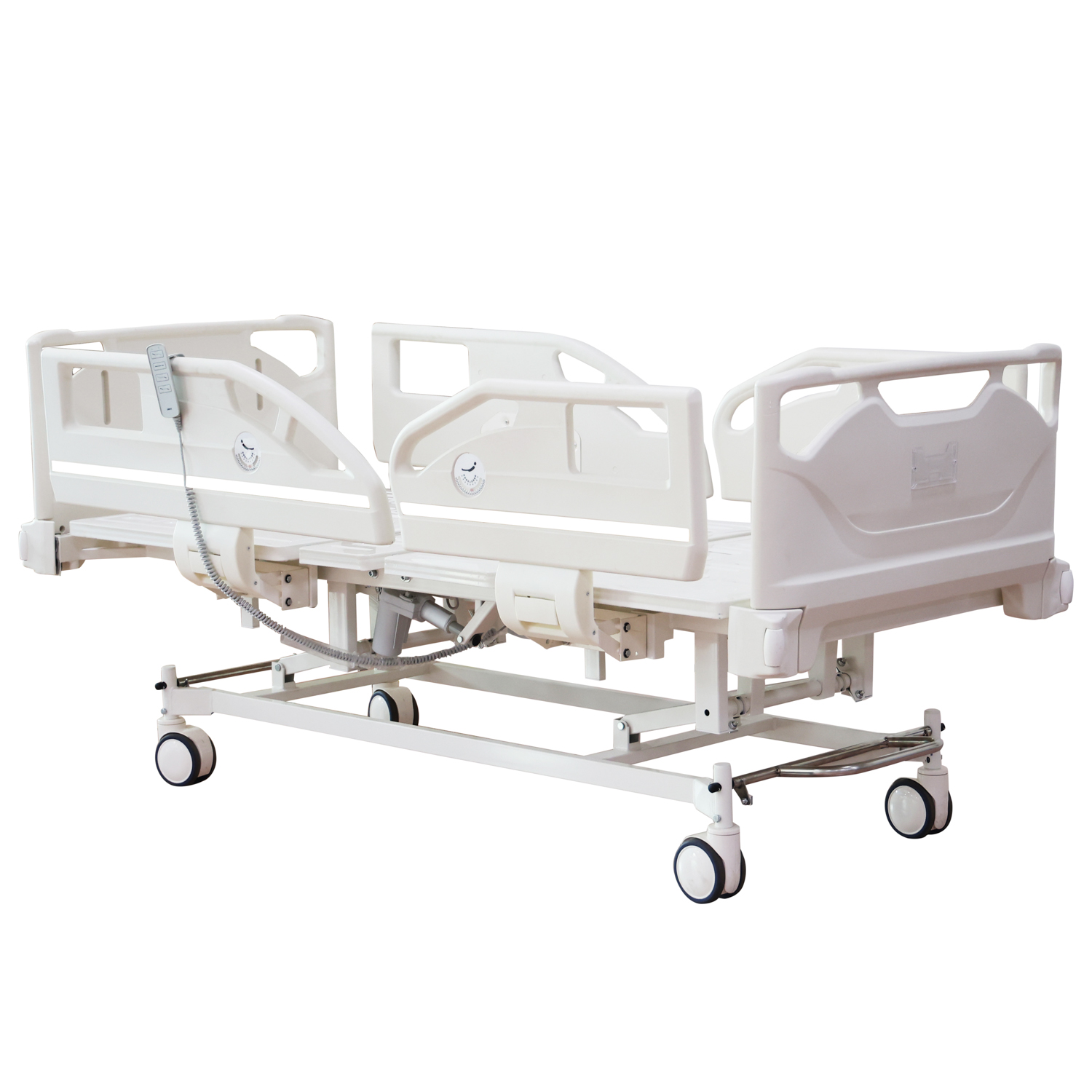

YK-E307 Deluxe three function electric bed

Features:

According to ergonomics, the back plate and leg plate are linked to design,and the electric adjustment bed can help the user adjust the sleeping position and sitting position and Upword /Doward titl position.

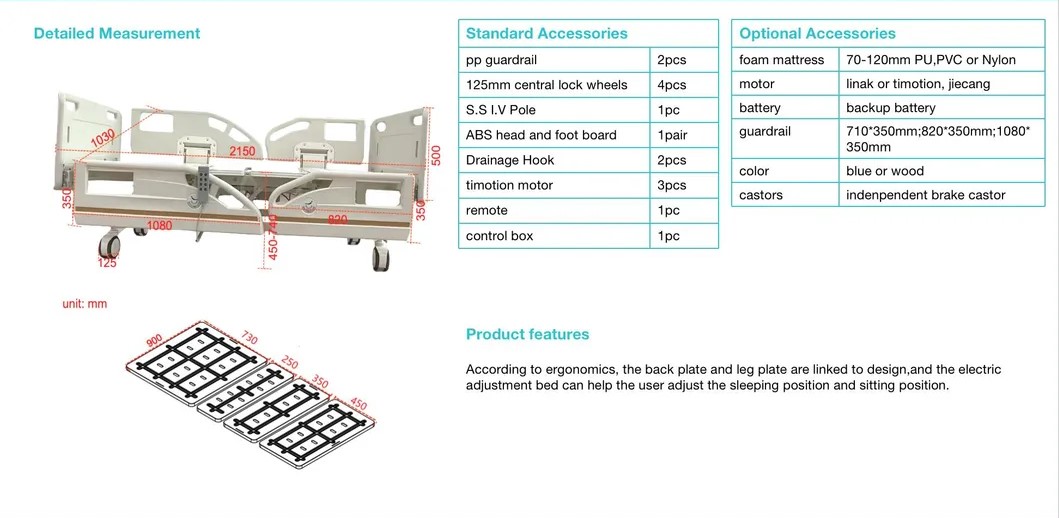

Size:

2230*1050*450-740mm(L*W*H）

Function:

  • HI-LOW: 450-740mm
  • Back section: 0-80°(±5°)
  • Knee section: 0-40°(±5°)
  • Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
  • 4 pcs sleeping Platforms
  • Detachable ABS foot and head boards, wooden color
  • 4 pcs detachable PP longer side boards,wooden color ,with degree display.
  • Quiet and robust electric actuators providereliable operation
  • 4 pcs central  lockable  castors at 4 courners, dia.125mm
  • Motor brand: Linak (3 motors,1 handset, 1 control box)
  • Bearing Capacity: 250kgs
  • Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Product Parameters：

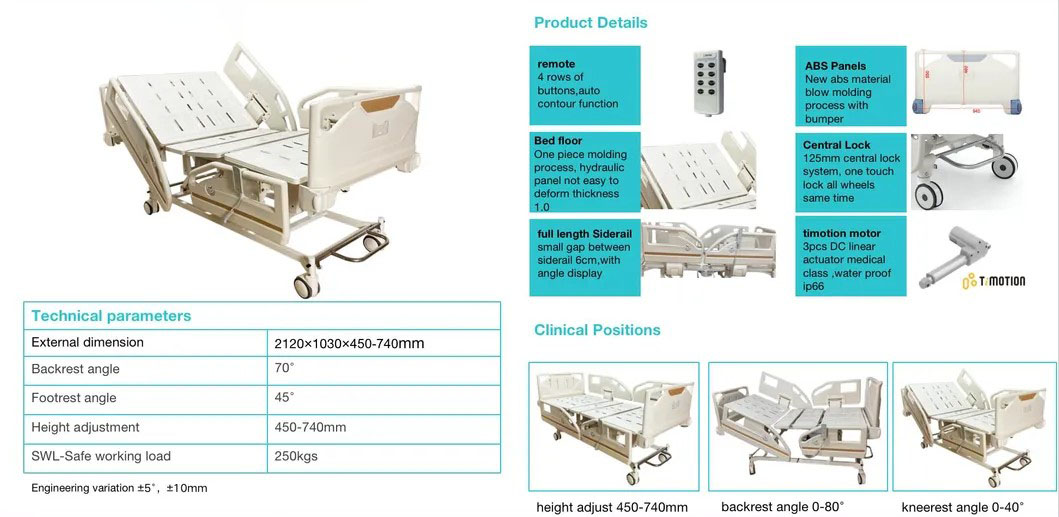

Technical parameters

External dimension

2120×1030×450-740mm

Backrest angle

70°

Footrest angle

45°

Height adjustment

450-740mm

SWL-Safe working load

250kgs



Standard Accessories

pp guardrail

2pcs

125mm central lock wheels

4pcs

S.S I.V Pole

1pc

ABS head and foot board

1pair

Drainage Hook

2pcs

timotion motor

3pcs

remote

1pc

control box

1pc



Optional Accessories

foam mattress

70-120mm PU,PVC or Nylon

motor

linak or timotion, jiecang

battery

backup battery

guardrail

710*350mm;820*350mm;1080*350mm

color

blue or wood

castors

indenpendent brake castor

Professional after-sales service：

  • 100% quality inspection before shipment and issue test report.
  • Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
  • Strong research and development capabilities, support customization.
  • The monthly production and delivery capacity is more than 3000 pieces.
  • More than 10 years of sales experience, to provide you with professional advice.
  • Integrity first, any product quality problems, full compensation unconditionally.
  • One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
  • The price of electric bed has an absolute advantage.
