Electric hospital bed
fcewdc
Five function electric bed-1

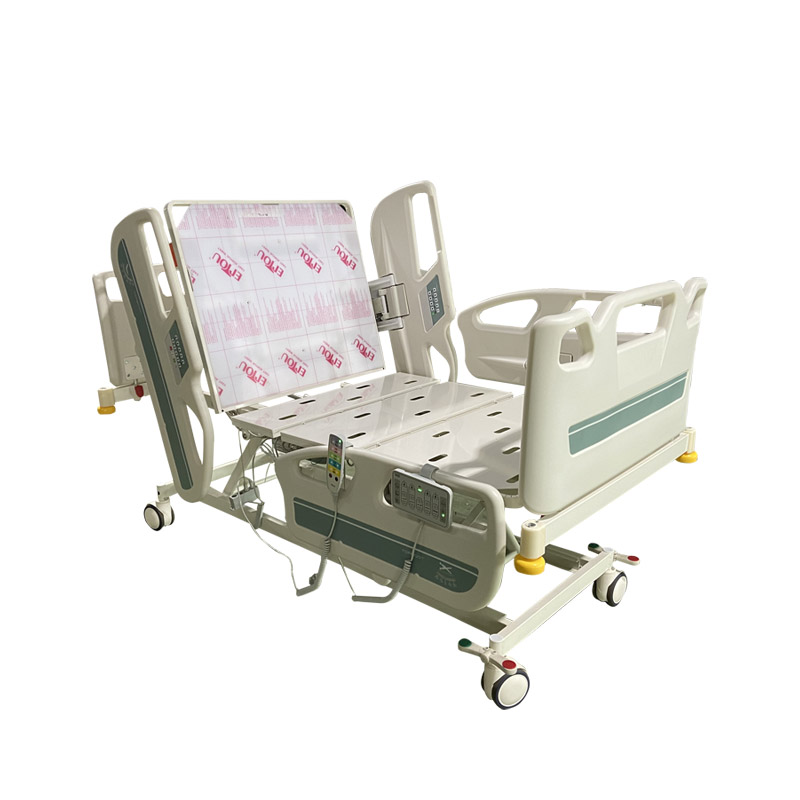

Five function electric bed-2

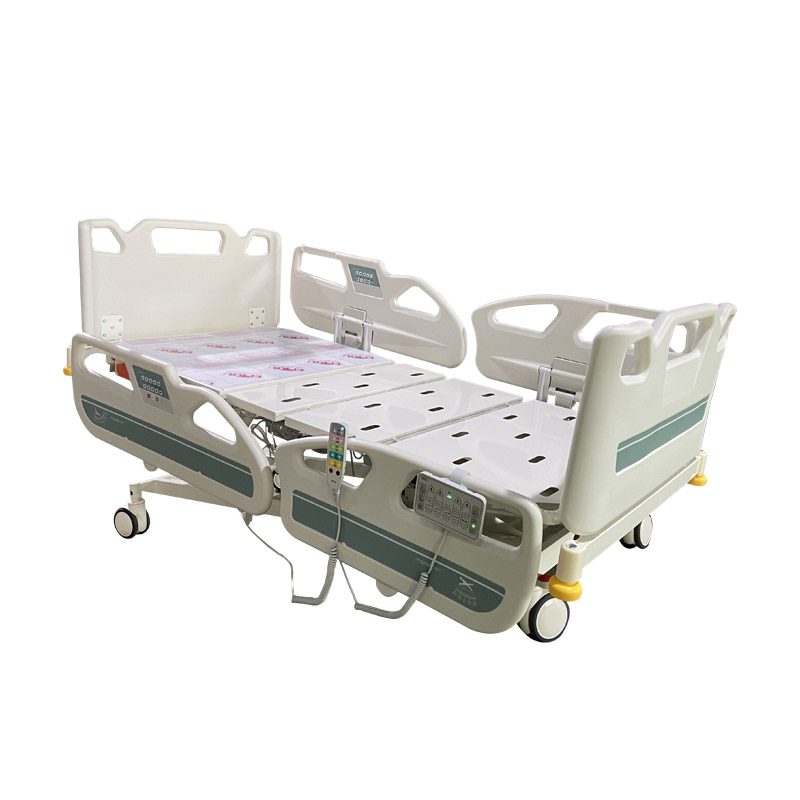

Five function electric bed-3

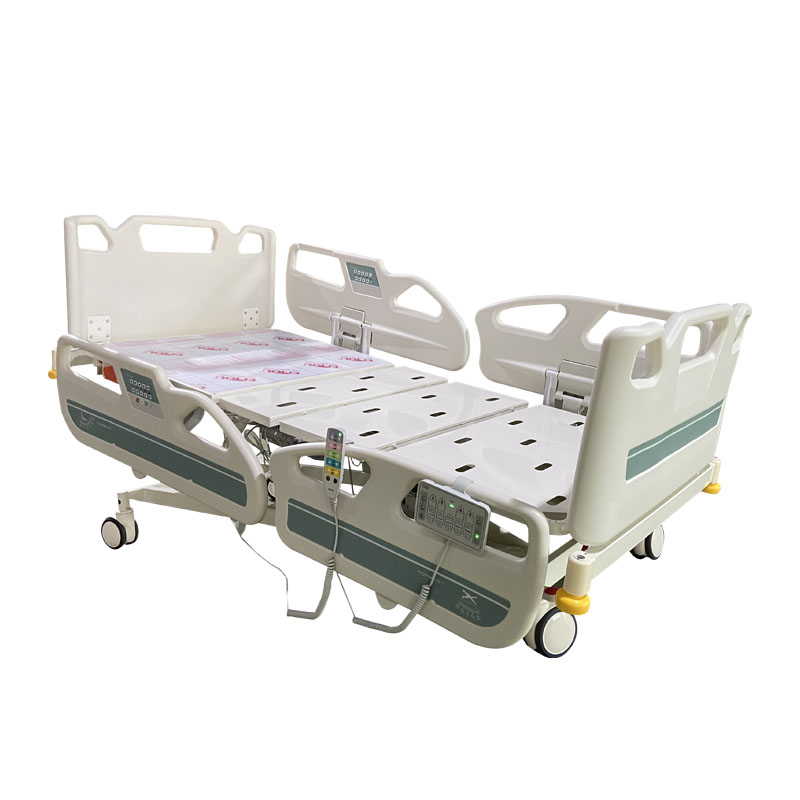

YK-E505 Five function electric bed-4

YK-E505 Five function electric bed

Features:

According to ergonomics, the back plate and leg plate are linked to design,and the electric adjustment bed can help the user adjust the sleeping position and sitting position and Upword /Doward titl position.

Size:

 2120×1050×410-730mm(L*W*H）

Function:

  • HI-LOW: 450-740mm
  • Back section: 0-80°(±5°)
  • Knee section: 0-40°(±5°)
  • Trendelenburg: 0-12°
  • Reverse trendelenburg: 0-12°
  • Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
  • 4 pcs sleeping Platforms
  • Detachable ABS foot and head boards, wooden  color, with bumpers
  • 4 pcs detachable PP long side boards , green  color, equipped with an angle indicator,
  • Quiet and robust electric actuators provide reliable operation
  • 4 pcs central  lockable castors at 4 courners, dia.125mm
  • Motor brand: Linak motor (4 motors,1 handset, 1 control box,one nurse remote)  ，with night light,with manual CPR for backboard,with electric CPR,
  • Bearing Capacity: 250kgs
  • Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Product Parameters：

Technical parameters

External dimension

2120×1050×410-730mm

Backrest angle

70°

Footrest angle

45°

Height adjustment

410-730mm

SWL-Safe working load

250kgs



Standard Accessories

pp guardrail

2pcs

125mm central lock wheels

4pcs

S.S I.V Pole

1pc

ABS head and foot board

1pair

Drainage Hook

2pcs

timotion motor

4pcs

remote

1pc

control box

1pc



Optional Accessories

foam mattress

70-120mm PU,PVC or Nylon

motor

linak or timotion, jiecang

battery

backup battery

guardrail

710*350mm;820*350mm;1080*350mm

color

blue or wood

castors

indenpendent brake castor
