Features :

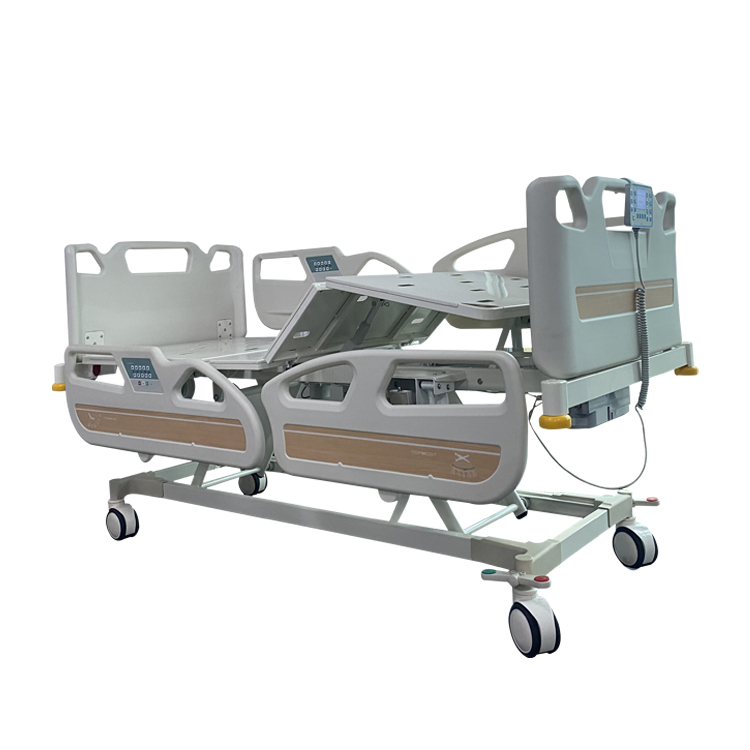

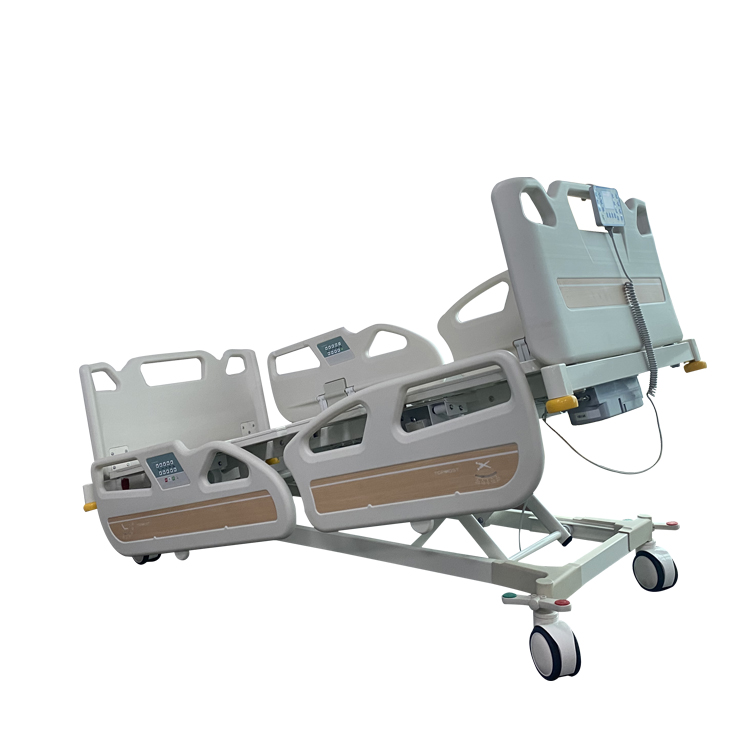

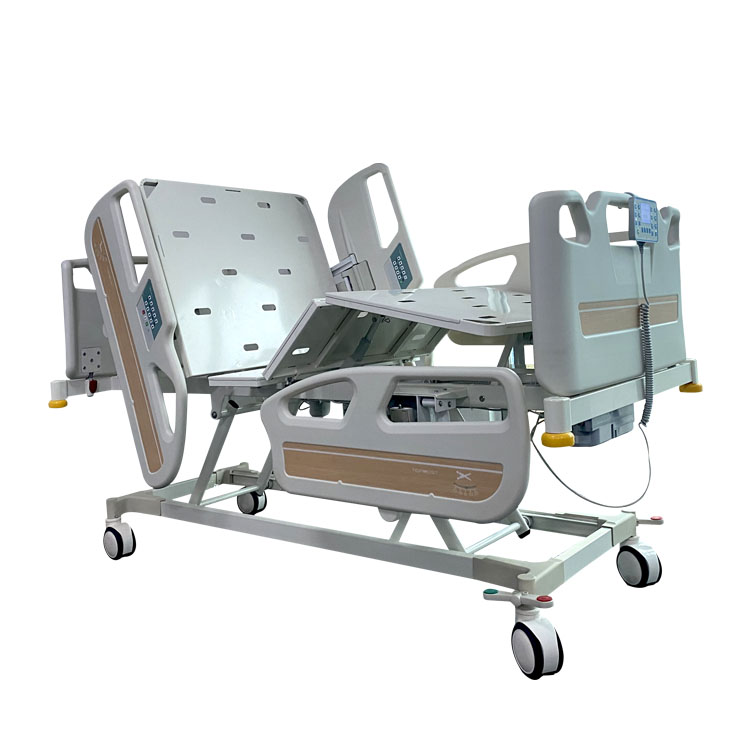

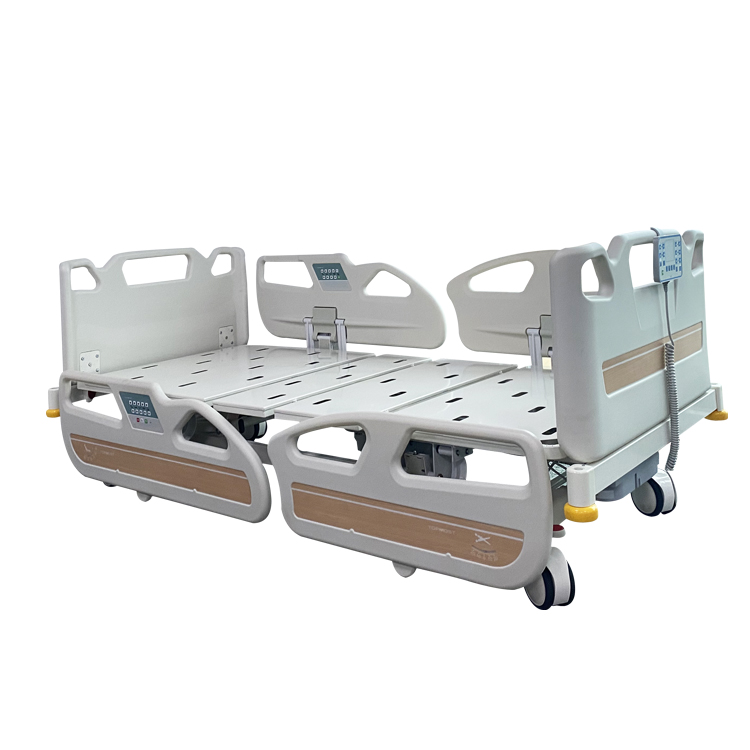

NAME: Electric five function icu bed

Use for ICU room, the back plate and leg plate are linked to design,and the electric adjustment bed can help the user adjust the sleeping position and sitting position and Upword /Doward titl position.

Size:

2210*1050*440-760mm(L*W*H ）

Function:

• HI-LOW: 440-760mm
• Back section: 0-80°(±5°)
• Knee section: 0-40°(±5°)
• Trendelenburg: 0-12°
• Reverse trendelenburg: 0-12°
• Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
• 4 pcs sleeping Platforms ,with Manual CPR at two sides of the bed
• Detachable ABS foot and head boards, bule  color, with bumpers
• 4 pcs detachable PP side boards, blue cover color, equipped with an angle indicator, with side board paitient button, with degree display.
• Quiet and robust electric actuators provide reliable operation
• 4 pcs central  lockable castors at 4 courners, dia.125mm
• Motor brand: Germany brand motor (4 motors,1 handset,1 battery, 1 control box,one nurse remote)
• With battery dispaly ,can show the status,on the nurse remote.
• With height dispaly with different color to show ,the lowest height with green light color,other positon height with orange light color, white color for normal use.
• Bearing Capacity: 250kgs
• Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes
