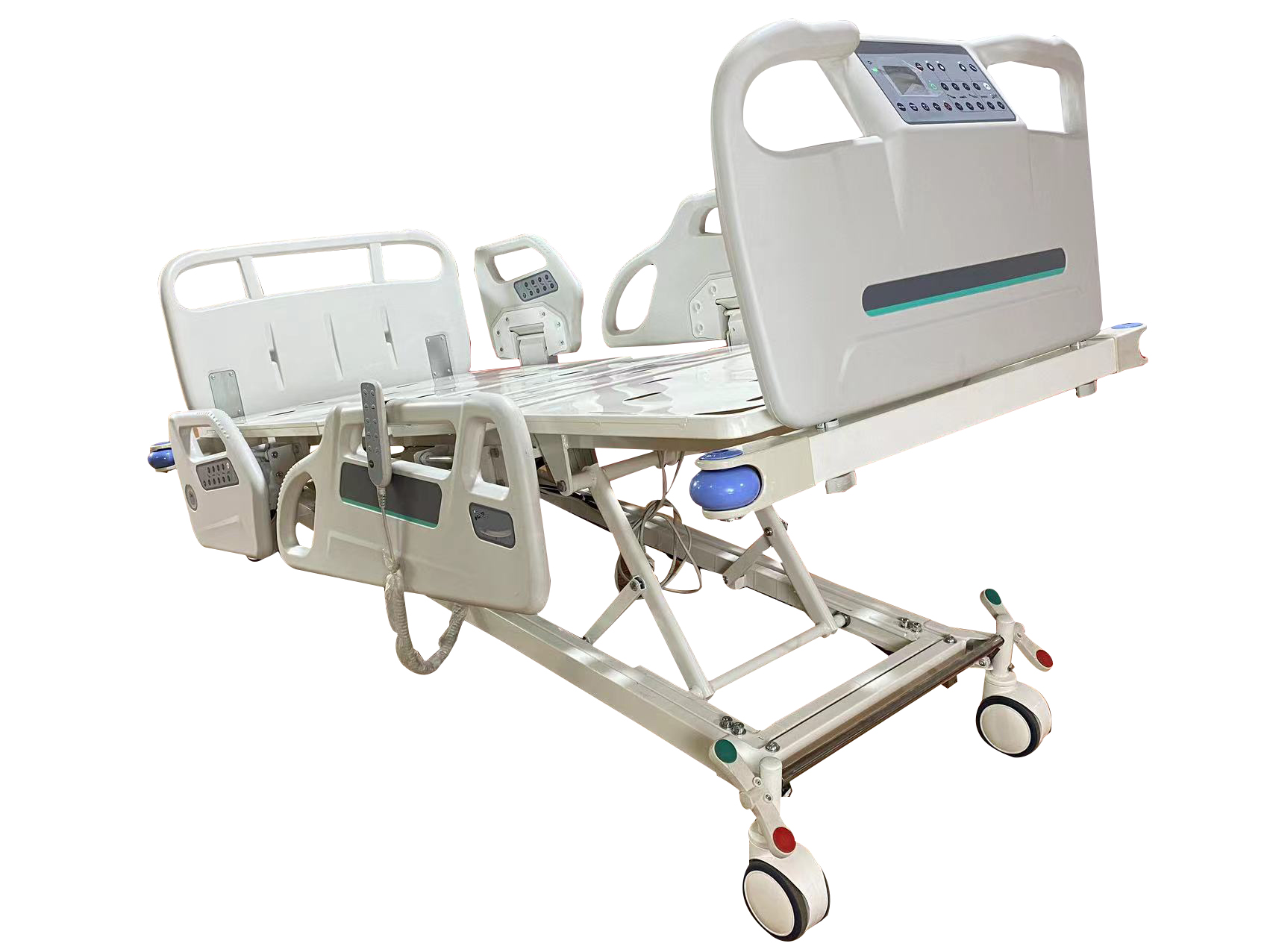

YK-E503-1

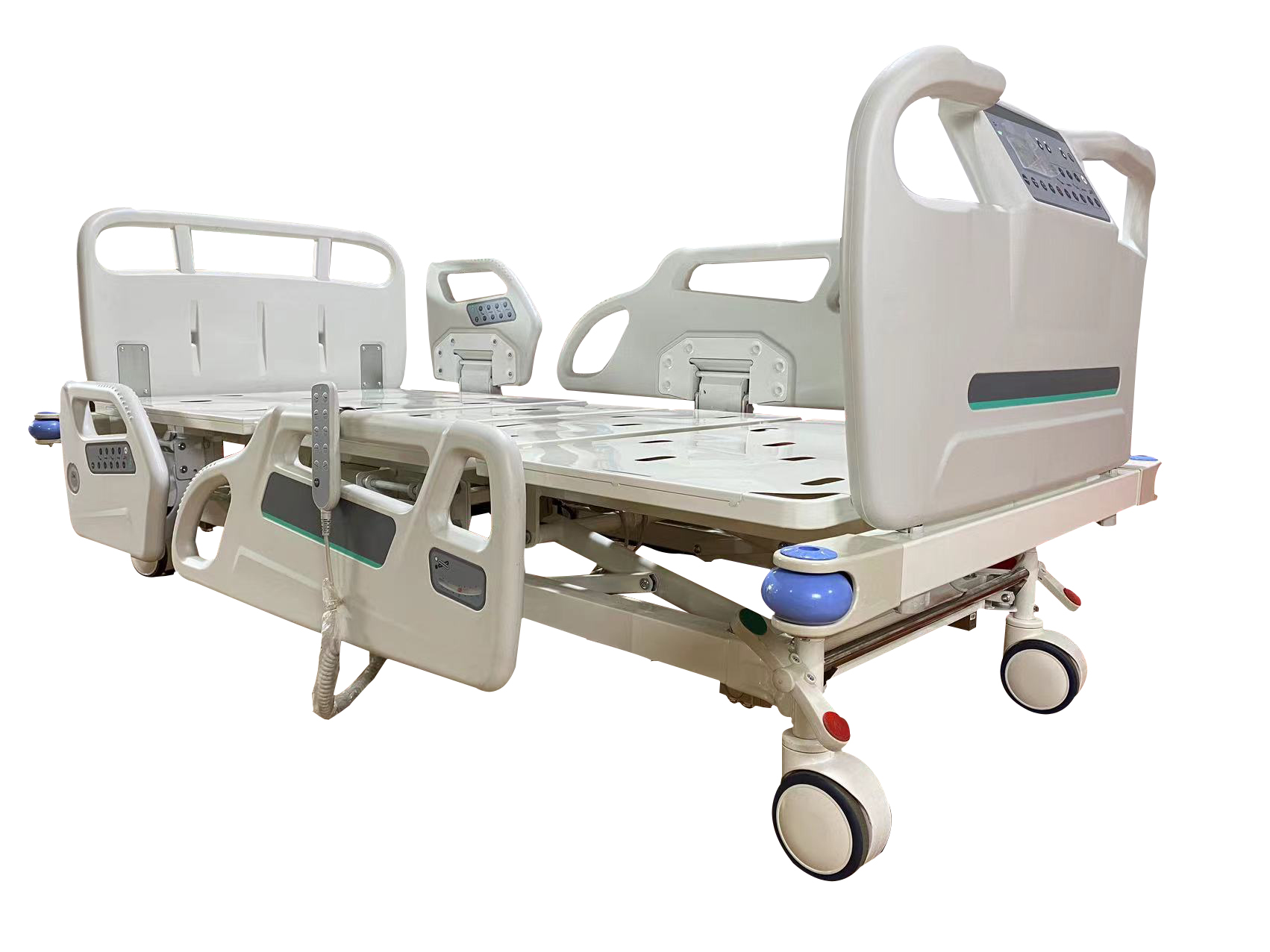

YK-E503-3
23418629e9e8cb31d1d3ccc9692a67f1

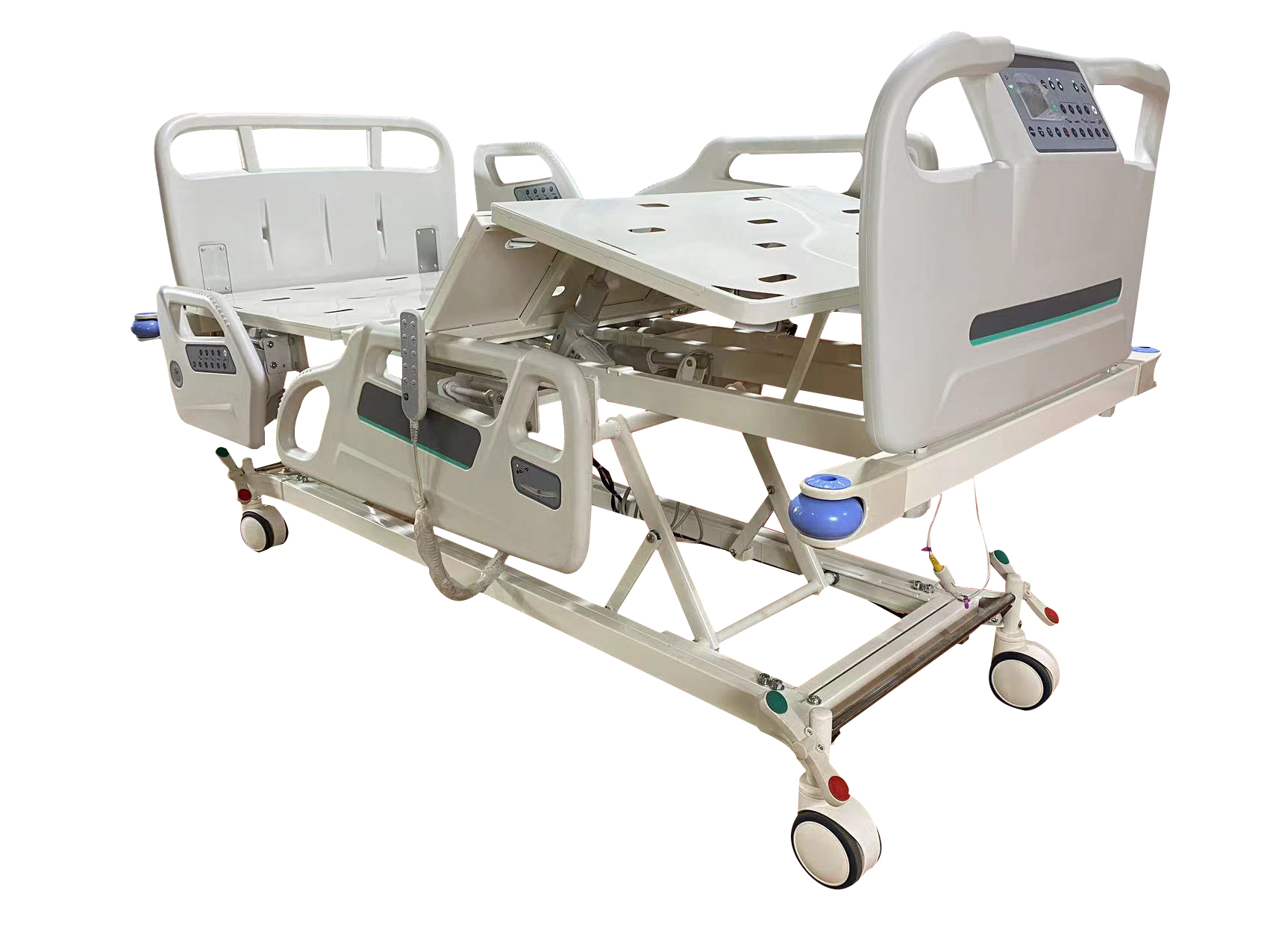

YK-E503-2

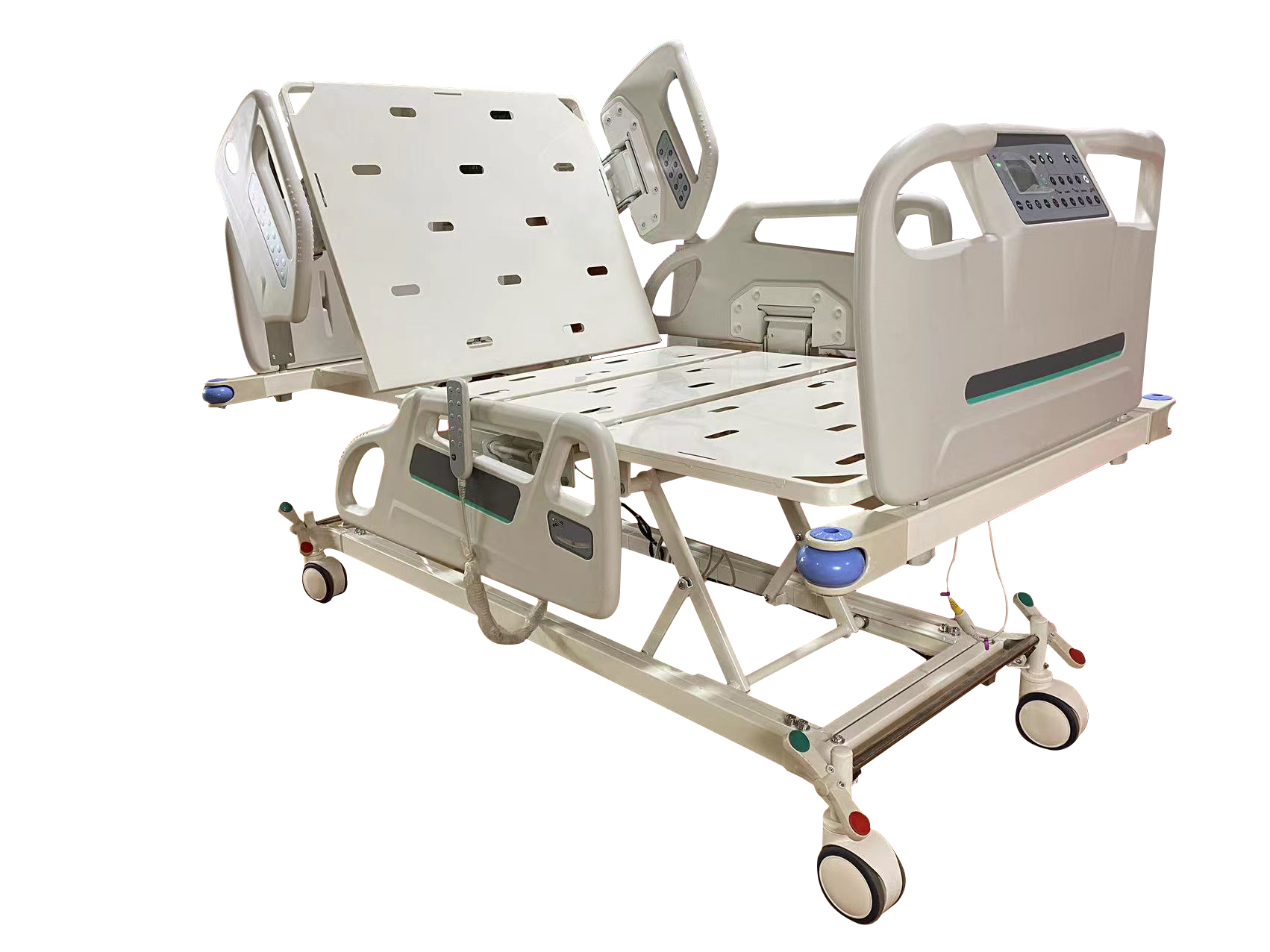

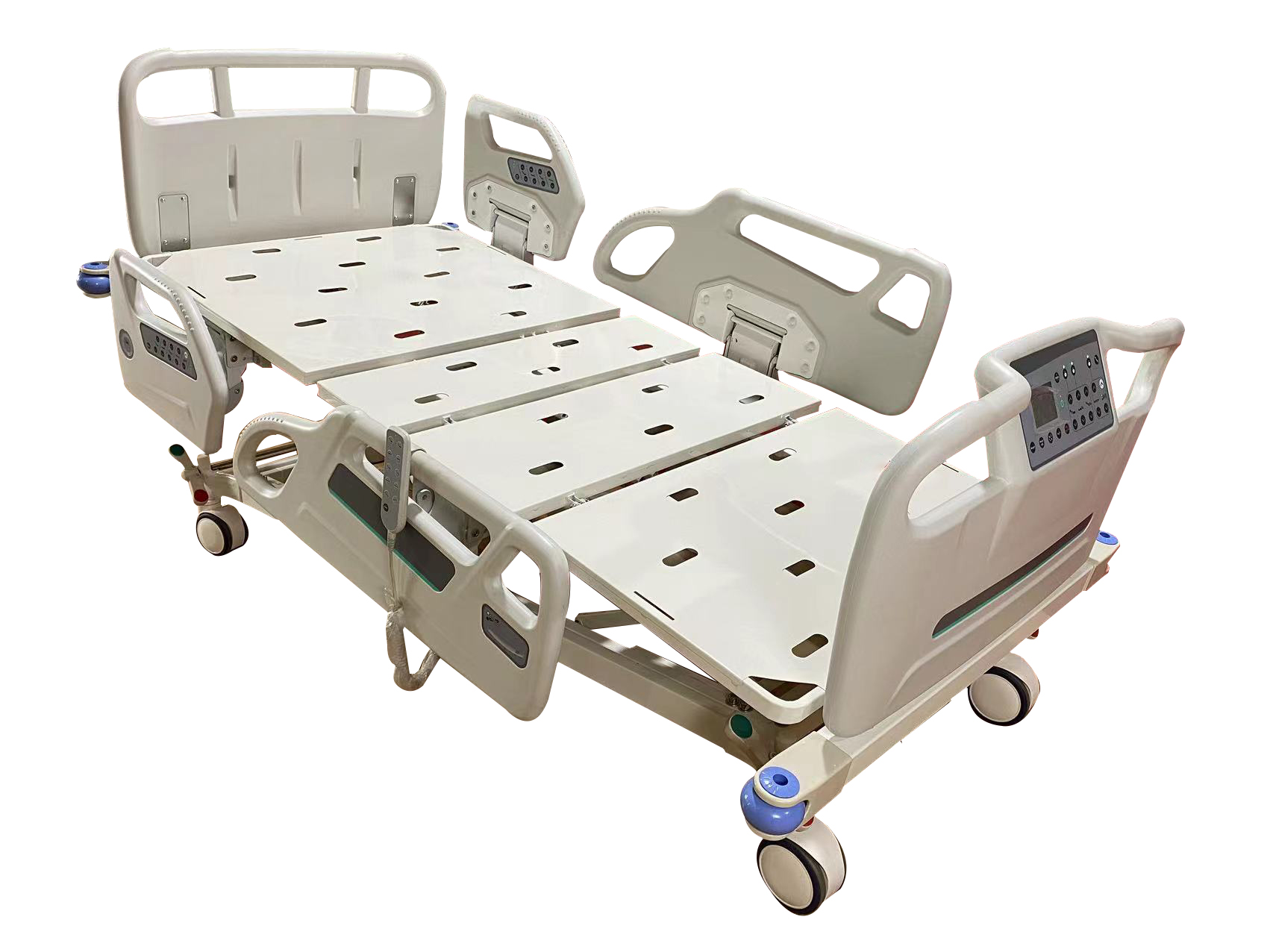

YK-E503 Five function electric bed With weighting function

1. Size:  2210*1050*440-770mm(L*W*H )

2. Function:
Back section: 0-80°(±5°)
Knee section: 0-40°(±5°)
HI-LOW: 450-740mm
Trendelenburg: 0-12°
Reverse trendelenburg: 0-12°

3.Material: cold-rolled steel plate, stable, treated by electro-coating & powder-coating

4.Features:
1)4 pcs sleeping Platforms
2)Detachable ABS foot and head boards, blue cover color, with patient record holder  ,Foot board with nurse control.      3) 4 pcs detachable PP long side rails, wooden cover color, equipped with an angle indicator, with side board paitient button, with degree display.
4)Quiet and robust electric actuators provide
5)4 pc Central lock system castors at 4 cornors,  dia.125mm
6)Bearing Capacity: 250KG
7)Motor brand: Taiwan  motor (4 motors,1 handset, 1 control box)
8)Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Brand Name: Topmost
Product Name: Electric five function hospital bed
Place of Origin: Guangdong,China
Warranty: 1-Year Limited Warranty
Model Number: YK-E503
Size: L2210*W1050*H440-770mm
Function:

1.Back section: 0-80°(+5°)

2.Knee section: 0-40°(+5°)
3. Trendelenburg: 0-12°

4.HI-Lo: 450-740MM

5.Reverse trendelenburg: 0-12°

6.Option:CPR Manual Release function for the back board

7.Electric CPR for all the function ,zero positon. with LED light which show the bed height ,at different color to show the height.

8. With battery dispaly
Head and foot board: 1 pair, ABS material,with patient name card holder
Color: Blue/green/brown/pink
Wheels : 5",  4pcs, with central brake
Guardrail 4pcs, PP side boards with control
I.V. Stand 1pc , S.S ,telescopic,with 2 hooks
I.V. Stand hole 4 pcs
Drainage hook 4 pcs
Packing sizes: 2100*1100*470mm
CBM: 1.5
OEM: Yes
Assemble: Frame has been assembled, Side rails/ head and foot board
Package: Carefully selected high-standard packaging materials ,Carton case, one piece in one carton
Delivery time: About 10~20 days for existing products
Private customization takes about 60 days
After-sale Service: Online Technical Support ,Onsite Installation, Onsite Training
Free spare parts

Professional after-sales service：

  • 100% quality inspection before shipment and issue test report.
  • Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
  • Strong research and development capabilities, support customization.
  • The monthly production and delivery capacity is more than 3000 pieces.
  • More than 10 years of sales experience, to provide you with professional advice.
  • Integrity first, any product quality problems, full compensation unconditionally.
  • One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
  • The price of electric bed has an absolute advantage.
