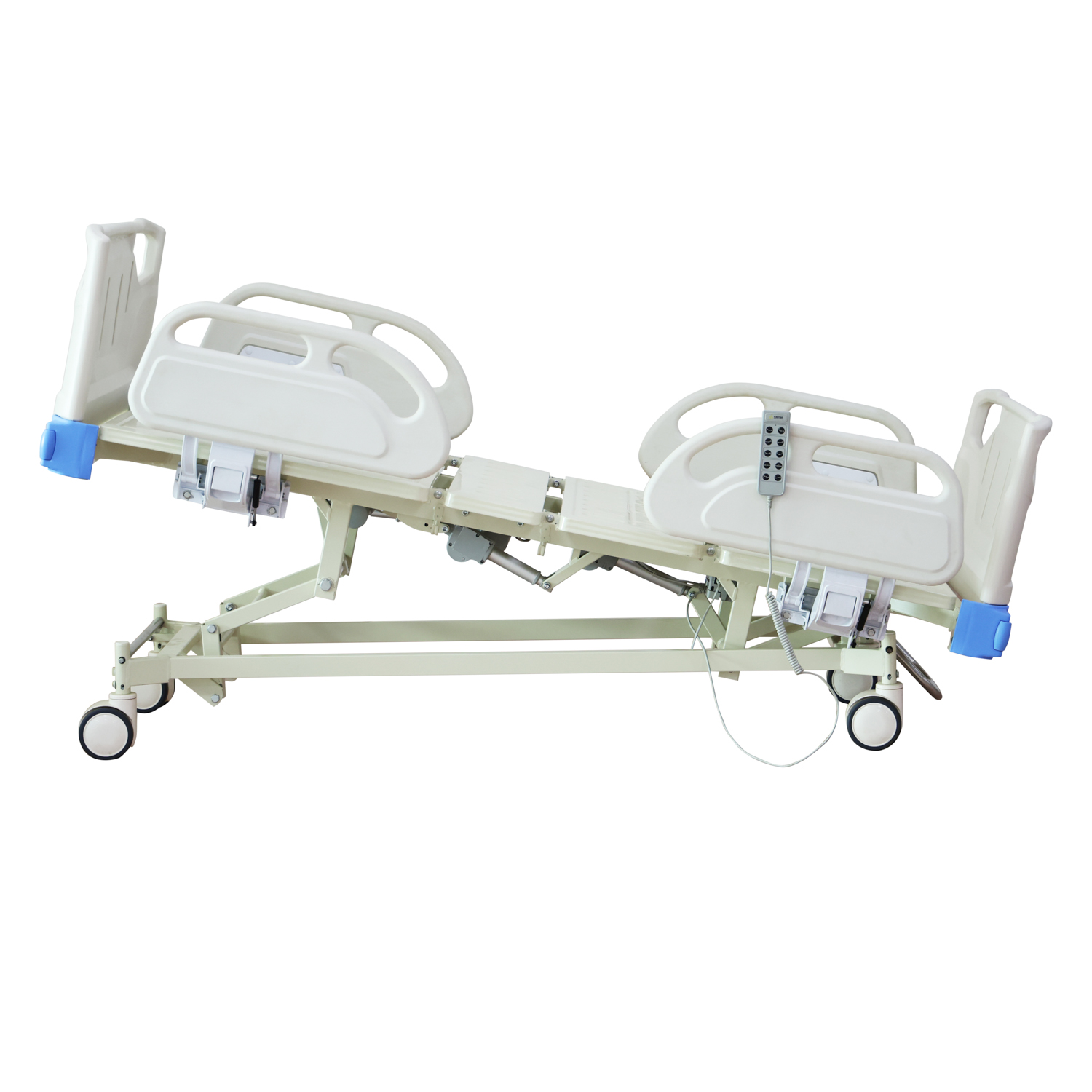

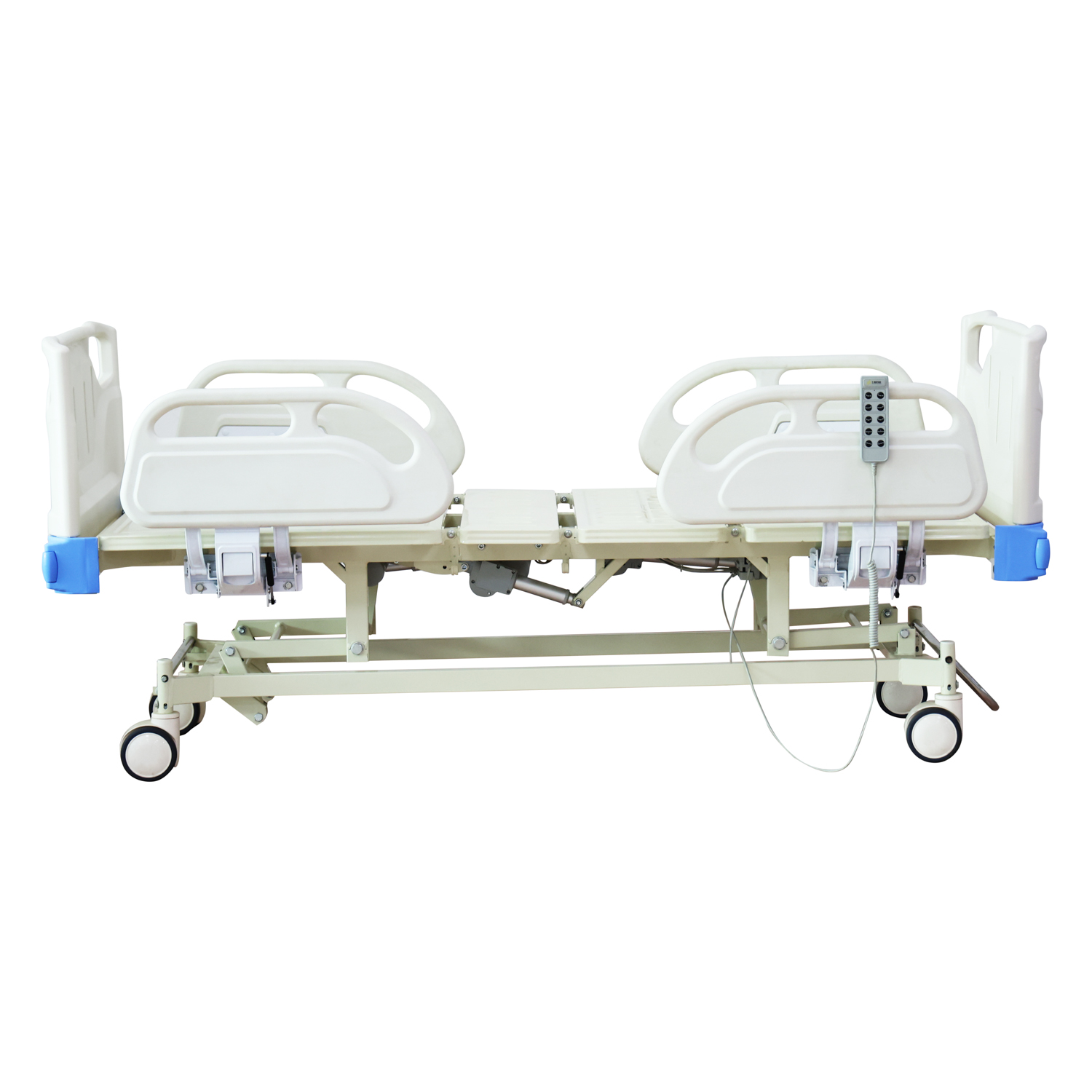

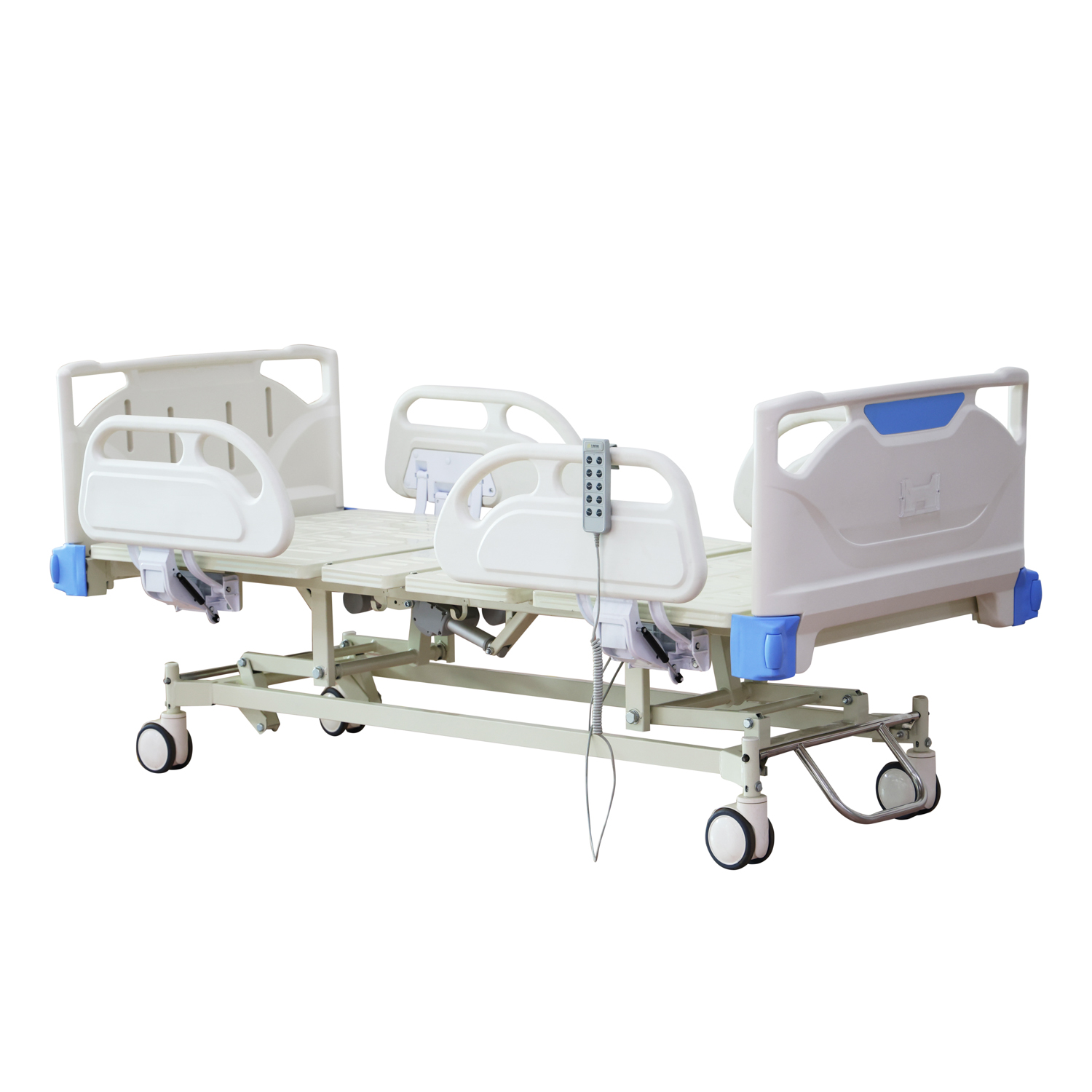

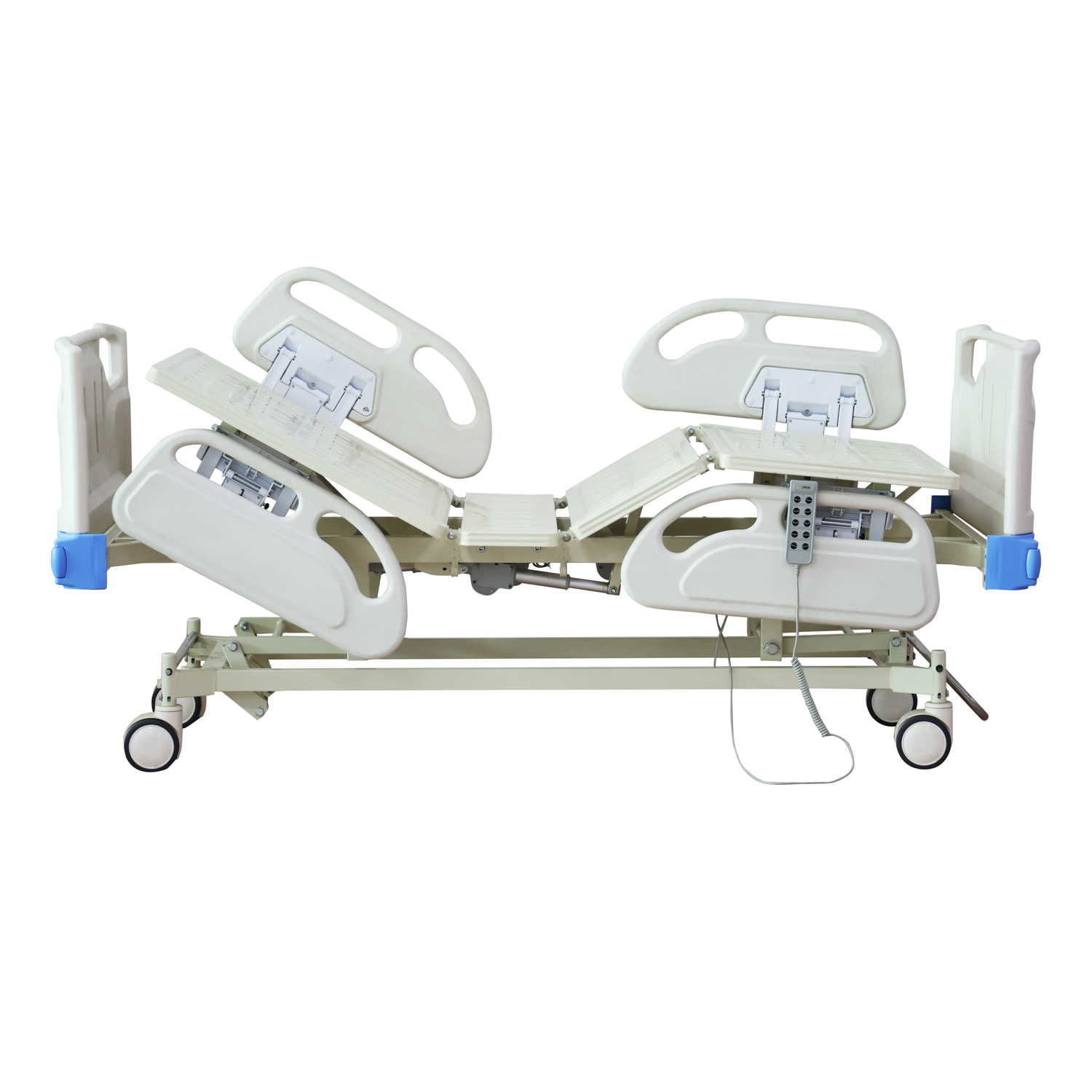

YK-E501 Five function electric bed

 Size& Function   :

►Size: 2120*1030*450-740mm(L*W*H Function:HI-LOW: 450-740mm
►Back section: 0-80°(±5°)
►Knee section: 0-40°(±5°)
►Trendelenburg: 0-12°
►Reverse trendelenburg: 0-12°     Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
►4 pcs sleeping Platforms
►Detachable ABS foot and head boards, blue cover color, with patient record holder
►4 pcs detachable PP side rails, blue cover color, equipped with an angle indicator, without side wall buttons
►Quiet and robust electric actuators provide
reliable operation
►4 pcs central  lockable castors at 4 courners, dia.125mm
►Motor brand: TIMOTIONmotor (4 motors,1 handset, 1 control box)
►Bearing Capacity: 250kgs
►Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Technical parameters

External dimension

2120×1030×450-740mm

Backrest angle

80°

Footrest angle

45°

Height adjustment

450-740mm

Trendelenburg

0-12°

Reverse trendelenburg

0-12°

Standard Accessories

PP guardrails

2pcs

125mm wheels

4pcs

S.S I.V Pole

1pc

ABS head and foot board

1pair

Drainage Hook

2pcs

timotion motor

4pcs

Optional Accessories

foam mattress

70-120mm PU,PVC or Nylon

motor brand

linak; jiecang

battery

backup battery

color

blue or wood

castors

indenpendent brake castor

CPR

manual cpr or electric cpr

Professional after-sales service：

  • 100% quality inspection before shipment and issue test report.
  • Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
  • Strong research and development capabilities, support customization.
  • The monthly production and delivery capacity is more than 3000 pieces.
  • More than 10 years of sales experience, to provide you with professional advice.
  • Integrity first, any product quality problems, full compensation unconditionally.
  • One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
  • The price of electric bed has an absolute advantage.
