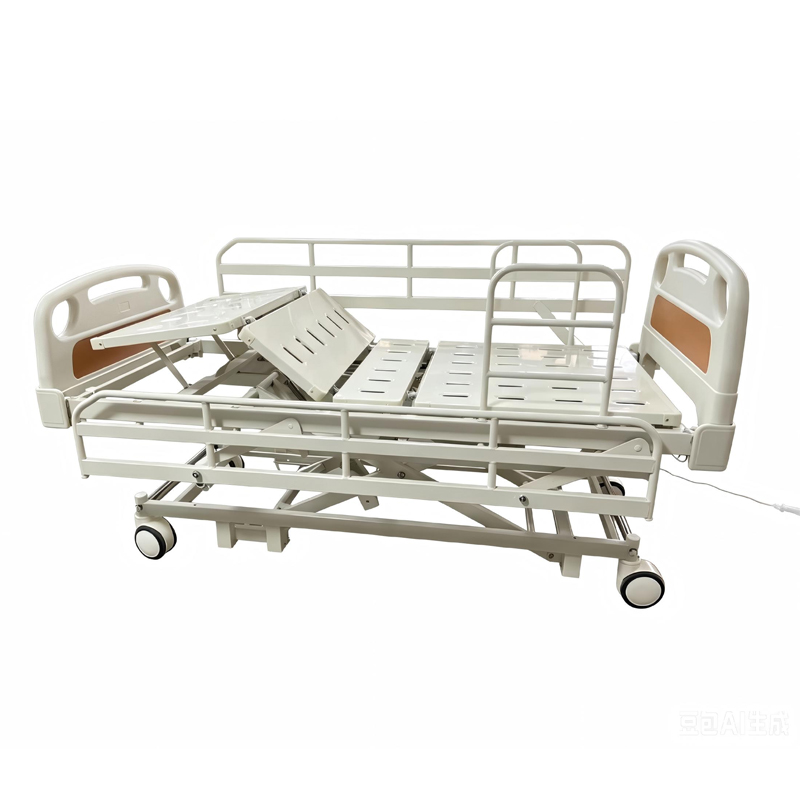

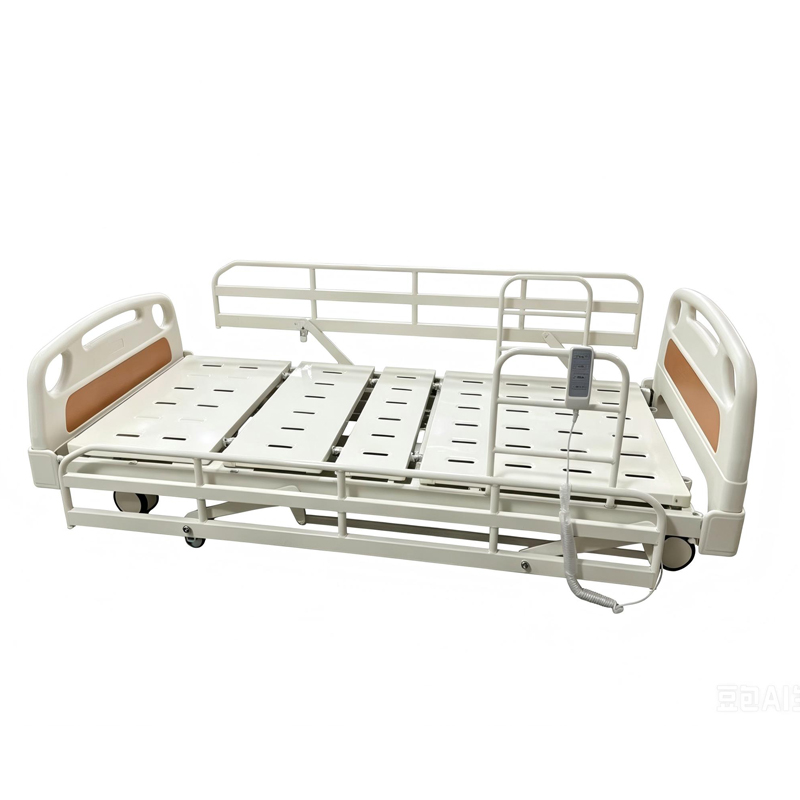

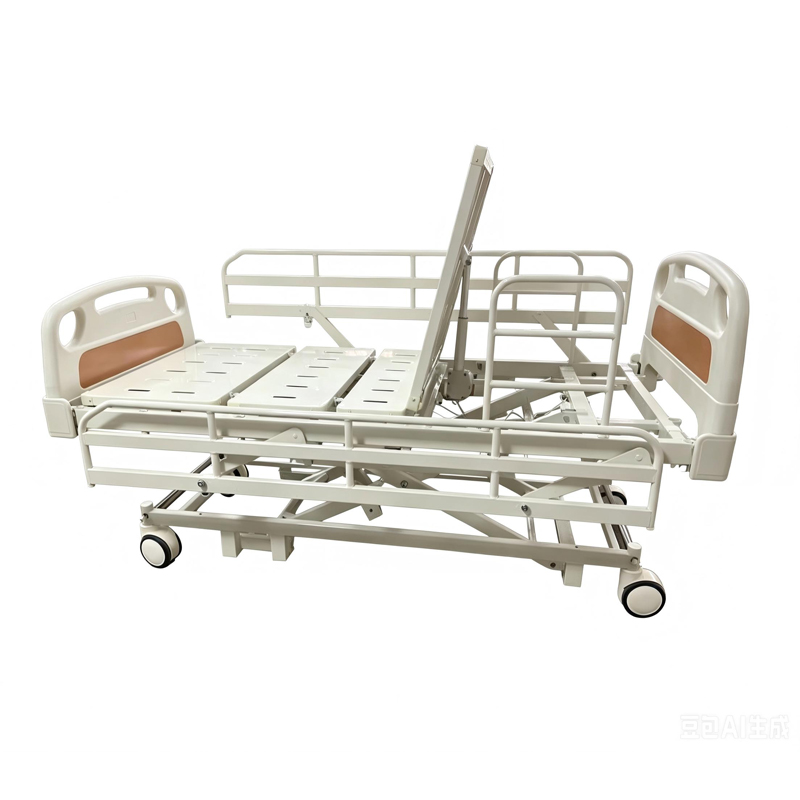

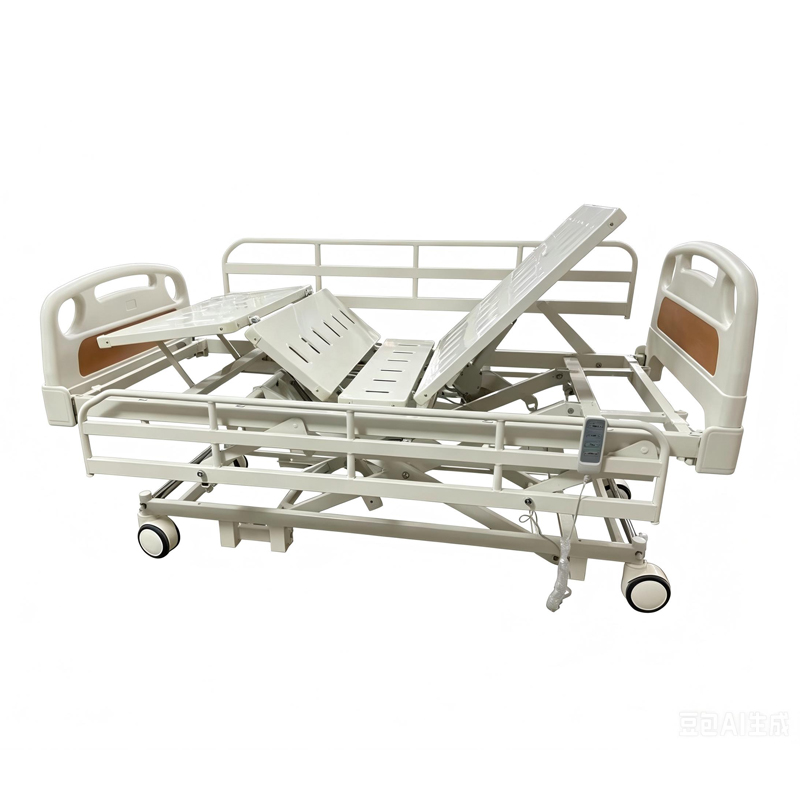

YK-E314a Three-Function Electric Ultra-Low Full-Rail Nursing Bed
Overall dimension (L × W): 1990 × 1023 mm
Vertical height adjustment range: 280–650 mm
Backrest lifting angle: 0°–80°
Knee rest lifting angle: 0°–40°, with synchronized back & leg linkage function
Maximum load capacity: 180 kg
Jiecang actuator motor with backup rechargeable battery
Cross-bar side rails with vertical middle bars; white ball knob latches fixed with adhesive at the bottom of rails. All screws on rails fitted with plastic covers and secured by bolts. Folded side rail height ≤ 6 cm
ABS head & foot boards with wood grain finish; slotted bed deck panels
Central control foot brake
2 short side rails included: size 500(L) × 330(H) mm, tube diameter 18 mm Full-length side rail total length: 1670 mm; inner bed frame total length: 1770 mm Reserved holes for IV stand and grab bar (grab bar and IV stand not supplied)
