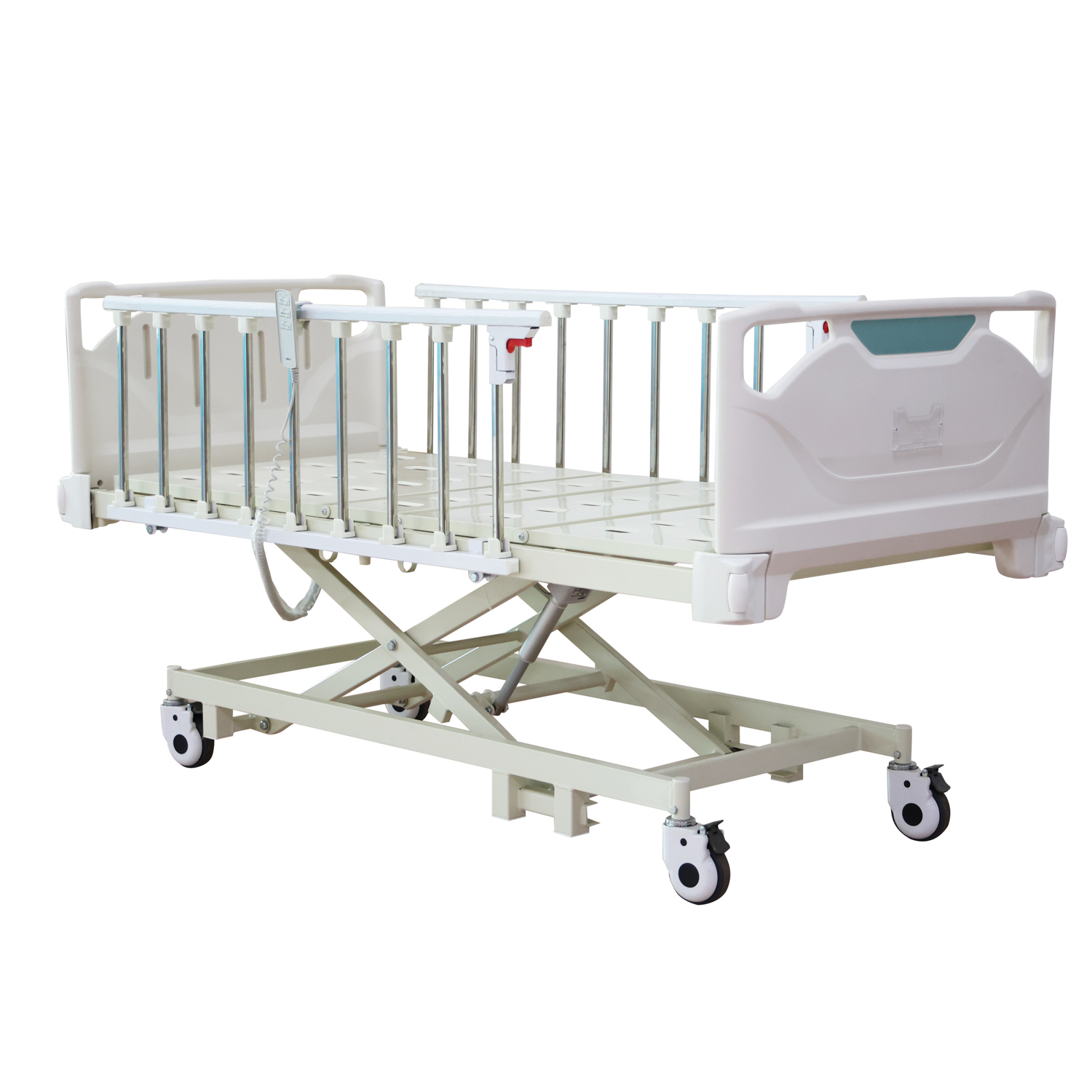

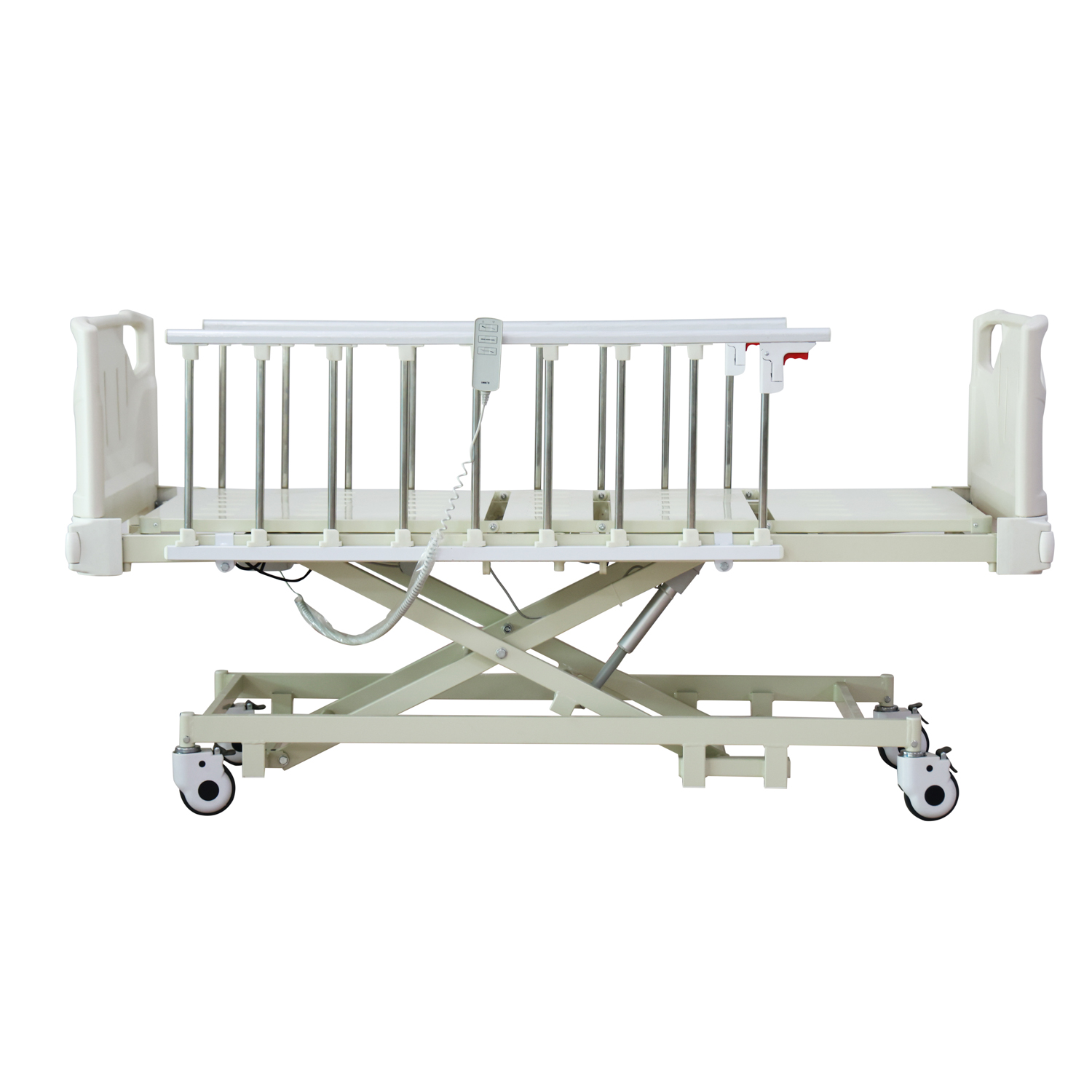

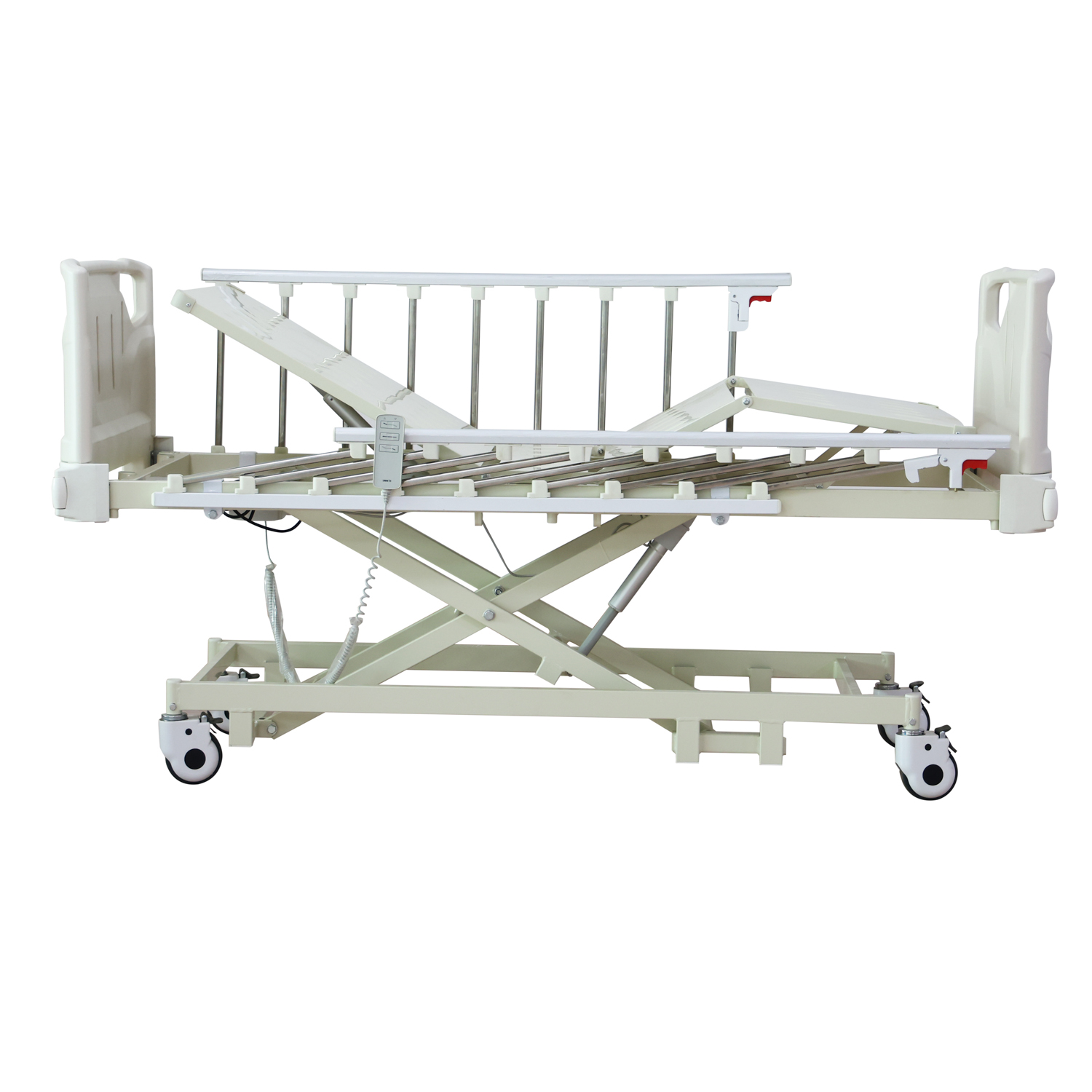

YK-E306 Electric Three-Function Care Bed

Features:

This Three Function Electric Bed is carefully designed for patients during their treatment. The head and foot board can be removed for the convenience of patients' transfer. The side rails are made by PP side board. And the gap between two side board is according to the international standard. All the position is controlled by electric ,use a remote to control all the function. This will provide long use life of cranks. With 4 pcs castors with central brakes, this is convenient for transportation.

Size:

2120*970*970*300-680mm(L*W*H)

Function:

  • HI-LOW: 450-740mm
  • Back section: 0-80°(±5°)
  • Knee section: 0-40°(±5°) Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
  • 4 pcs sleeping Platforms
  • Detachable ABS foot and head boards, blue cover color, with patient record holder
  • 2pcs detachable Aluminum side rails with 6pcs aluminum tube ,up and down ,with automatic lock to protect the patient not fall down from the bed
  • Quitet and robust electric actuators provide
  • reliable operation
  • 4 pcs central lockable castors at 4 corners, diameter 125mm
  • Motor brand: JIECANG motor(3 motors,1 handset, 1 control box)
  • Bearing Capacity:180kgs,270kgs
  • Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Specifications:

Name

Electric Three function Hospital Bed

Item No.

YK-E306

Outside size

1980 *970*300-680mm

Inside size of mattress base

L1950*W840mm

warranty

one year after shipment

Head and foot board

Detachable ABS Head & foot board

Side rail

1pcs Aluminum side rail

Motor brand

Timotion/Jiecang

Motor system

1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor,1pc remote ,1pc control box.one plug.

Castors

5",individual lock system castors,

Urine hooks

Urine hooks by steel chrome and Plastic dipping together

Approval

ISO13485;CE

Raw material

Steel and ABS

Options

Dining Table; Mattress, Bedside cabinet.

Safe working load

The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 250kgs.



Functions:

Back-rest lifting

0-75°(±2%) by Remote

Knee-rest lifting

0-45°(±2%) by Remote

Height adjustable

300-680mm by Remote



Standard Accessories:

Head & foot board

1set

Guardrails

2pcs

Wheels

4pcs

Motors

3pcs

Remote

1pc

Urine hooks

4pcs

I.V. drip holes

4pcs

I.V. pole

1pc

1)4 pcs sleeping Platforms
2)Detachable ABS foot and head boards, blue cover color, with patient record holder
3) 2pcs  detachable Aluminum side rails with 6pcs aluminum tube ,up and down ,with automatic lock to  protect the patient not fall down from the bed                                                                   4)Quiet and robust electric actuators providereliable operation
5)4 pcs individual  lockable   castors at 4 corners, diameter 125mm
6)Bearing Capacity: 270KG
7)Timotion motor  (3 motors,1 handset, 1 control box)
8)Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes



Professional after-sales service：

  • 100% quality inspection before shipment and issue test report.
  • Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
  • Strong research and development capabilities, support customization.
  • The monthly production and delivery capacity is more than 3000 pieces.
  • More than 10 years of sales experience, to provide you with professional advice.
  • Integrity first, any product quality problems, full compensation unconditionally.
  • One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
  • The price of electric bed has an absolute advantage.
