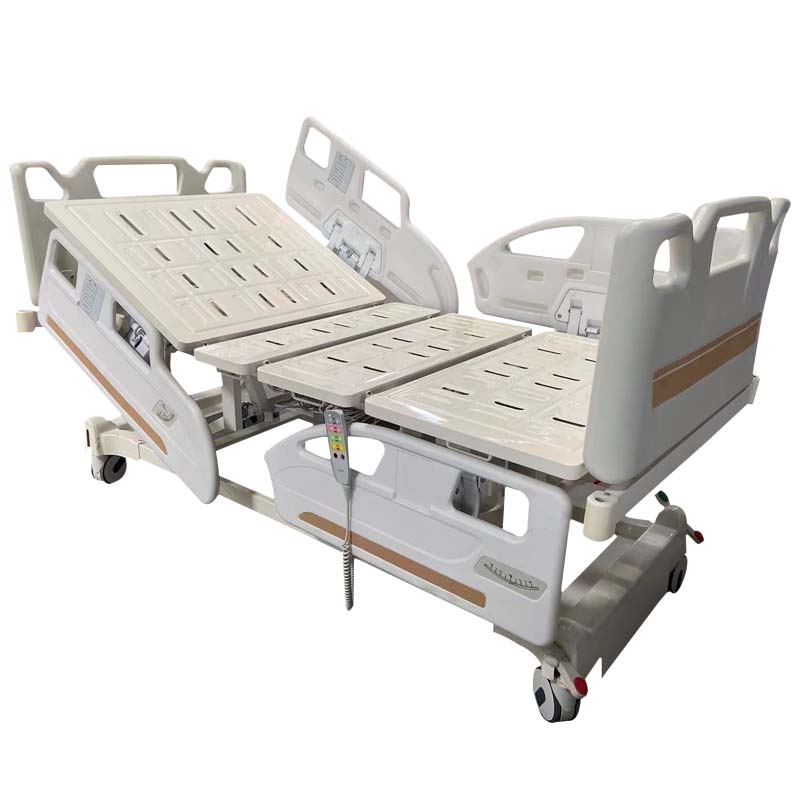

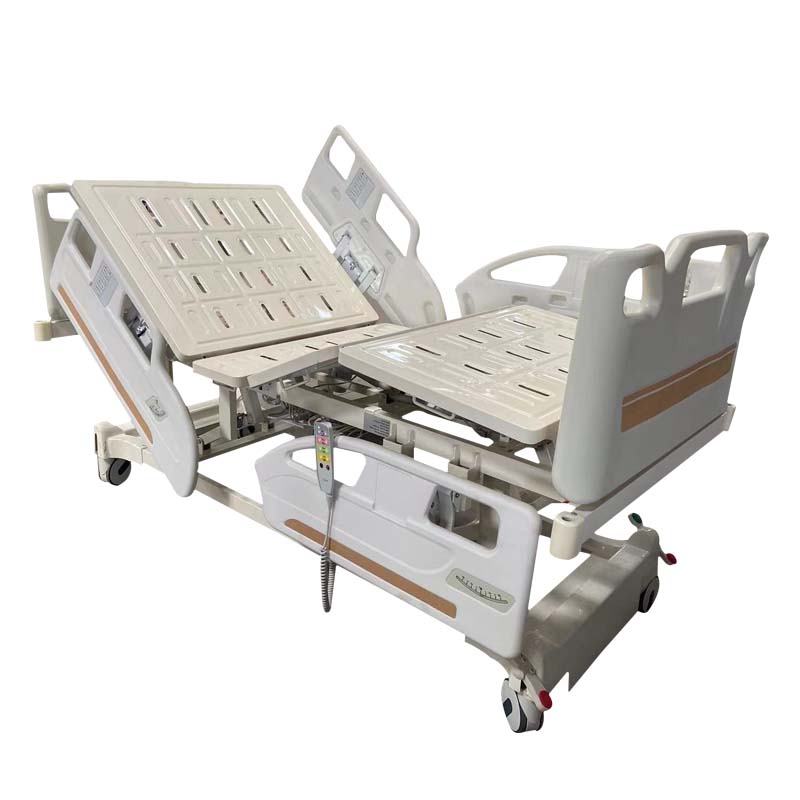

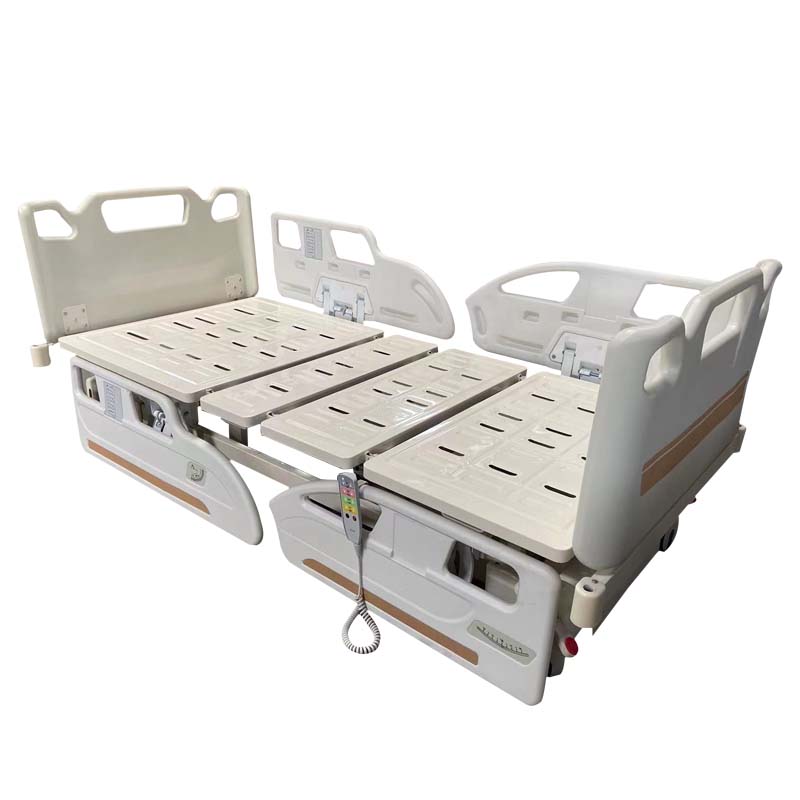

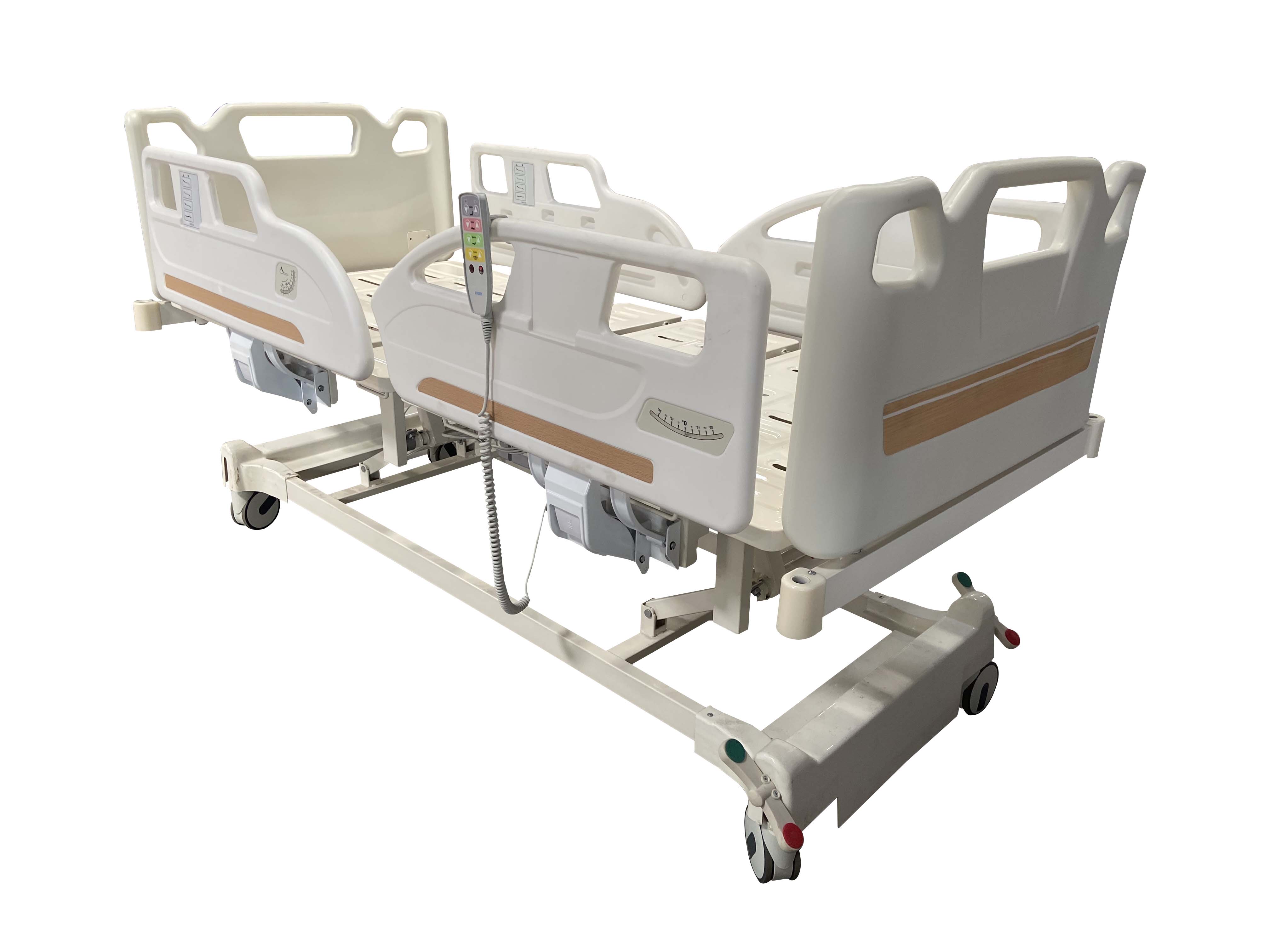

YK-E302C Deluxe Three Function Electric Bed

  Size& Function   :

►Size: 2150*1030*450-740mm(L*W*H)

Function:►HI-LOW: 450-740mm
►Back section: 0-70°(±5°) ►Knee section: 0-45°(±5°)

Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
►4 pcs sleeping Platforms
►Detachable ABS foot and head boards, bule color
►4 pcs detachable PP longer side boards,wooden color ,with degree display.
►Quiet and robust electric actuators providereliable operation
►4 pcs central  lockable  castors at 4 courners, dia.125mm
►Motor brand: Timotion/Linak/Jiecang  motor (3 motors,1 handset, 1 control box)
►Bearing Capacity: 250kgs
►Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Technical parameters

External dimension

2120×1030×450-740mm

Backrest angle

70°

Footrest angle

45°

Height adjustment

450-740mm

SWL-Safe working load

250kgs

Standard Accessories

pp guardrail

2pcs

125mm central lock wheels

4pcs

S.S I.V Pole

1pc

ABS head and foot board

1pair

Drainage Hook

2pcs

timotion motor

3pcs

remote

1pc

control box

1pc

Optional Accessories

foam mattress

70-120mm PU,PVC or Nylon

motor

linak or timotion, jiecang

battery

backup battery

guardrail

710*350mm;820*350mm;1080*350mm

color

blue or wood

castors

indenpendent brake castor
