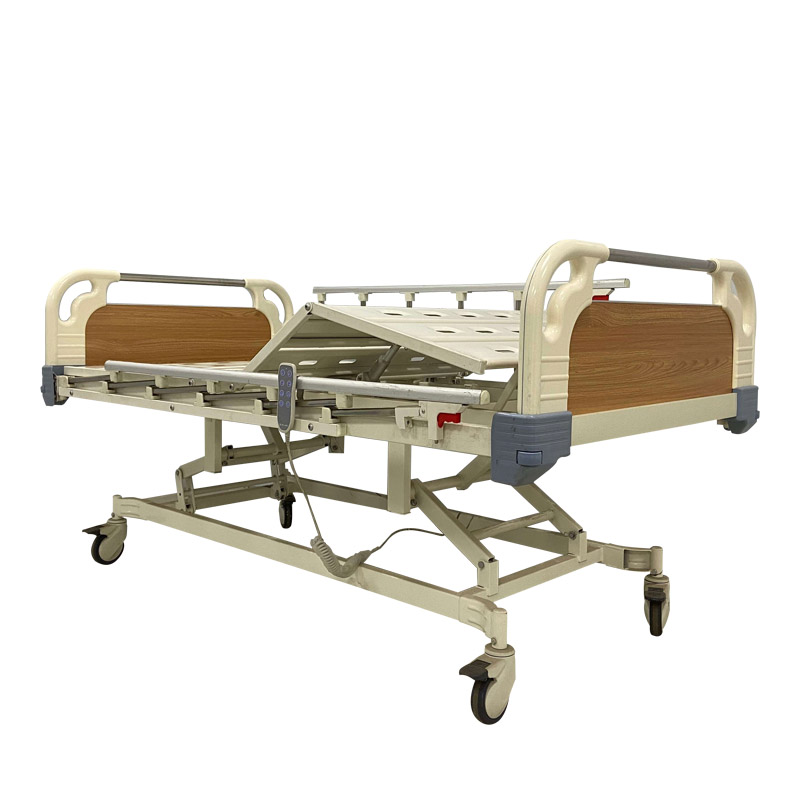

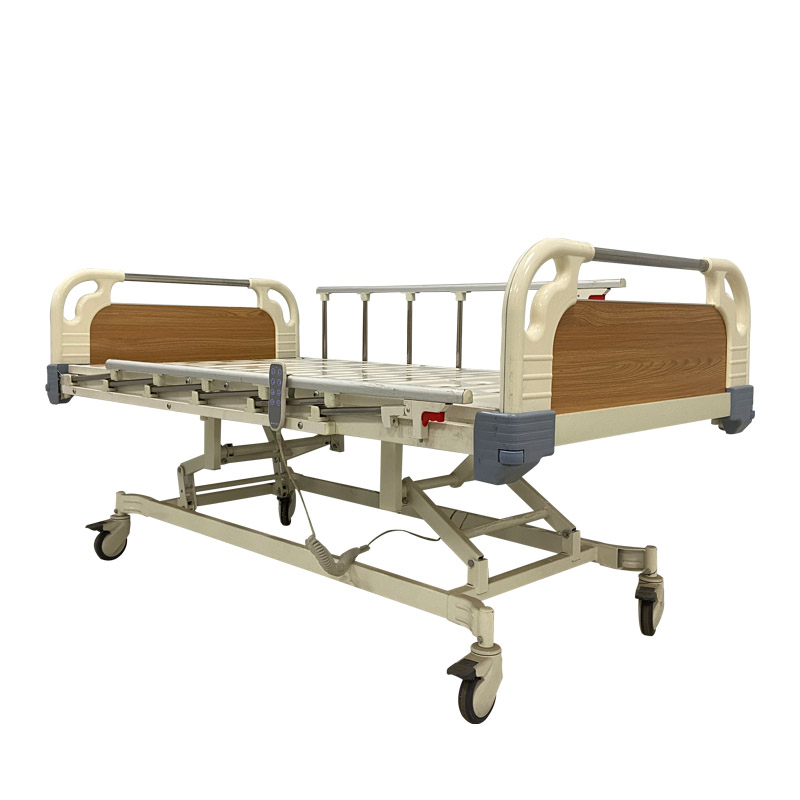

YK-E301b Electric Three Function Hospital Bed

Product Parameters

1)4 pcs sleeping Platforms
2)Detachable ABS foot and head boards, blue cover color, with patient record holder
3) 2pcs  detachable Aluminum side rails with 6pcs aluminum tube ,up and down ,with automatic lock to  protect the patient not fall down from the bed
4)Quiet and robust electric actuators providereliable operation
5)4 pcs individual  lockable   castors at 4 corners, diameter 125mm
6)Bearing Capacity: 250KG
7)Timotion motor  (3 motors,1 handset, 1 control box)
8)Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Name Electric Three function Hospital Bed
Item No. YK-E301b
Outside size L2120×W1300×H270-680mm
Inside size of mattress base L1950*W840mm
warranty one year after shipment
Head and foot board Detachable ABS Head & foot board
Side rail 1pcs Aluminum side rail
Motor brand Timotion/Jiecang/junesun
Motor system 1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor,
1pc remote ,1pc control box.one plug.
Castors 5",individual lock system castors,
Urine hooks Urine hooks by steel chrome and Plastic dipping together
Approval ISO13485;CE,mdma
Raw material Steel and ABS
Options  Dining Table; Mattress, Bedside cabinet.
Safe working load The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 250kgs.


Function

Back-rest lifting 0-75°(±2%) by Remote
Knee-rest lifting 0-45°(±2%) by Remote
Height adjustable H260-680mm by Remote


Standard Accessories:

Head & foot board 1set
Guardrails 2pcs
Wheels 4pcs
Motors 3pcs
Remote 1pc
Urine hooks 4pcs
I.V. drip holes 4pcs
I.V. pole 1pc
