Electric home care bed
fcewdc

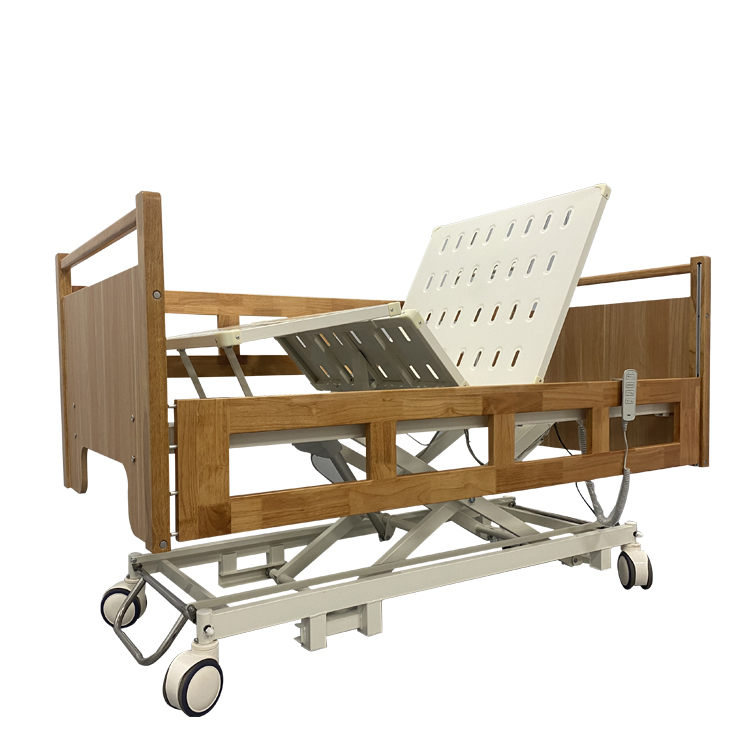

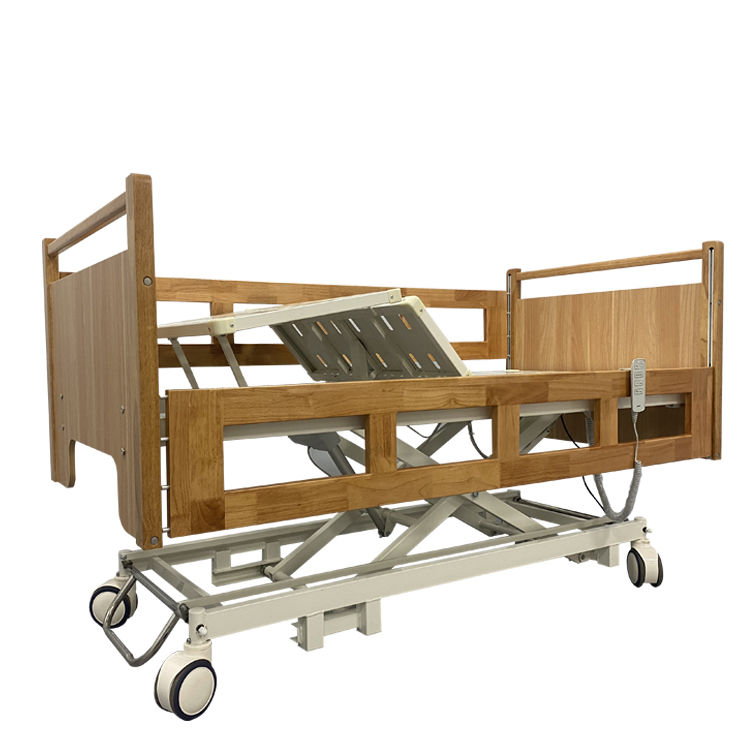

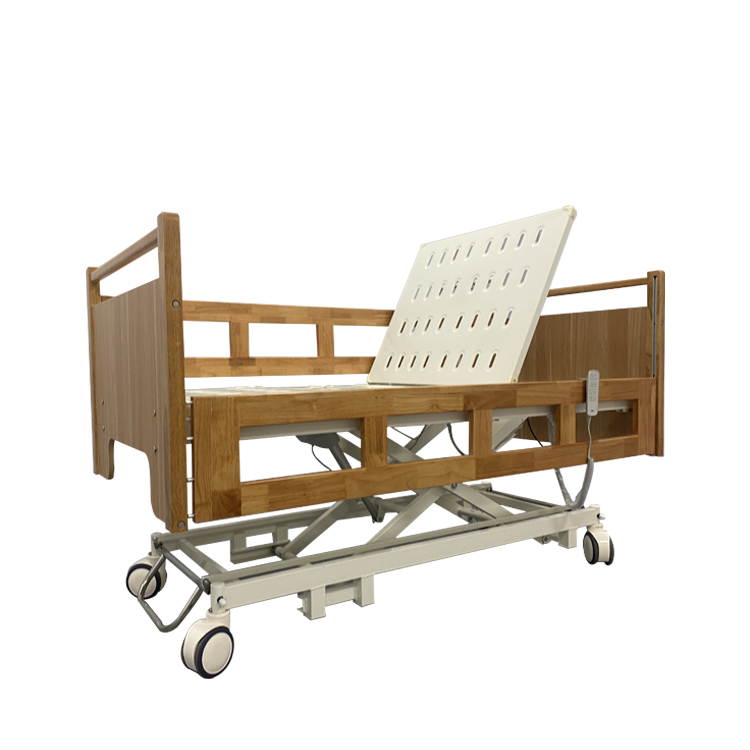

YK-E313 Electric home care bed

Features:

Furniture-style nursing beds combine medical functionality with a homelike aesthetic, featuring adjustable positions, sturdy construction, and user-friendly controls to support patient comfort, mobility, and caregiver convenience—seamlessly blending into home environments without compromising care quality.

Size:

L2120*W970*H350~680mm (L*W*H)

Function:

  • Backrest  angle: 80°±5°
  • Kneerest  angle: 40°±5°
  • Height adjustment (without mattress): 350~680mm
  • Trendelenburg and reverse trendelenburg are 12

Material:

cold-rolled steel plate, stable, treated by electro-coating & powder-coating

Features:

  • with solid wooden head and foot board
  • 2 pcs aluminum side rails with S.S bars, up and down to protect the patient not fall down from the bed,collapsed type with safe lock.with solid wooden side board
  • Bed framework made from mild steel ERW rectangular tubes
  • With 4pcs 5" individual brake wheels
  •  With 3 Linak motors from Denmark
  • Bearing Capacity: 250KG
  • electric 3 functions:
  • Backrest  angle: 80°±5°Kneerest  angle: 40°±5°
  • backrest&kneerest up/down together
  • Height adjustment (without mattress): 350~680mm
  • Accessories: 1 pc SS telescopic I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes



Specifications:

Name

Electric Three function Hospital Bed

Item No.

YK-Eh310

Outside size

 L2120*W970*H350~680mm

Inside size of mattress base

L1950*W840mm

warranty

one year after shipment

Head and foot board

Detachable MDF Wooden  Head & foot board,with bumpers

Side rail

2pieces Aluminum side rail,

Motor brand

Linak/JieCang/Taiwan motor

Motor system

1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor,
1pc remote ,1pc control box.one plug.

Castors

5",individual lock system castors

Urine hooks

4 Urine hooks

Approval

ISO13485;CE

Raw material

Steel and ABS

Options

Dining Table; Mattress, Bedside cabinet.

Safe working load

The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 180kgs.



Functions:

Back-rest lifting

0-75°(±2%) by Remote

Knee-rest lifting

0-45°(±2%) by Remote

Height adjustable

H350-680mm by Remote



Standard Accessories:

Head & foot board

1set

Guardrails

4pcs

Wheels

4pcs

Motors

3pcs

Remote

1pc

Urine hooks

4pcs

I.V. drip holes

4pcs

I.V. pole

1pc

Professional after-sales service:

  • 100% quality inspection before shipment and issue test report.
  • Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
  • Strong research and development capabilities, support customization.
  • The monthly production and delivery capacity is more than 3000 pieces.
  • More than 10 years of sales experience, to provide you with professional advice.
  • Integrity first, any product quality problems, full compensation unconditionally.
  • One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
  • The price of electric bed has an absolute advantage.

PARAMETERS TABLE



Specifications:

Name

Electric Three function Hospital Bed

Item No.

YK-Eh310

Outside size

 L2120*W970*H350~680mm

Inside size of mattress base

L1950*W840mm

warranty

one year after shipment

Head and foot board

Detachable MDF Wooden  Head & foot board,with bumpers

Side rail

2pieces Aluminum side rail,

Motor brand

Linak/JieCang/Taiwan motor

Motor system

1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor,
1pc remote ,1pc control box.one plug.

Castors

5",individual lock system castors

Urine hooks

4 Urine hooks

Approval

ISO13485;CE

Raw material

Steel and ABS

Options

Dining Table; Mattress, Bedside cabinet.

Safe working load

The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 180kgs.



Functions:

Back-rest lifting

0-75°(±2%) by Remote

Knee-rest lifting

0-45°(±2%) by Remote

Height adjustable

H350-680mm by Remote



Standard Accessories:

Head & foot board

1set

Guardrails

4pcs

Wheels

4pcs

Motors

3pcs

Remote

1pc

Urine hooks

4pcs

I.V. drip holes

4pcs

I.V. pole

1pc
