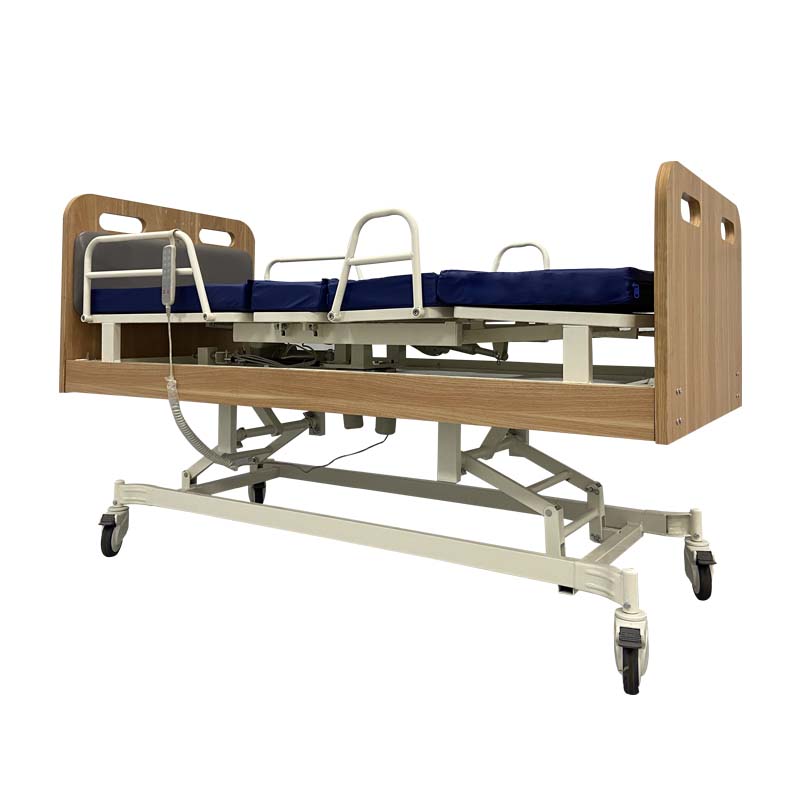

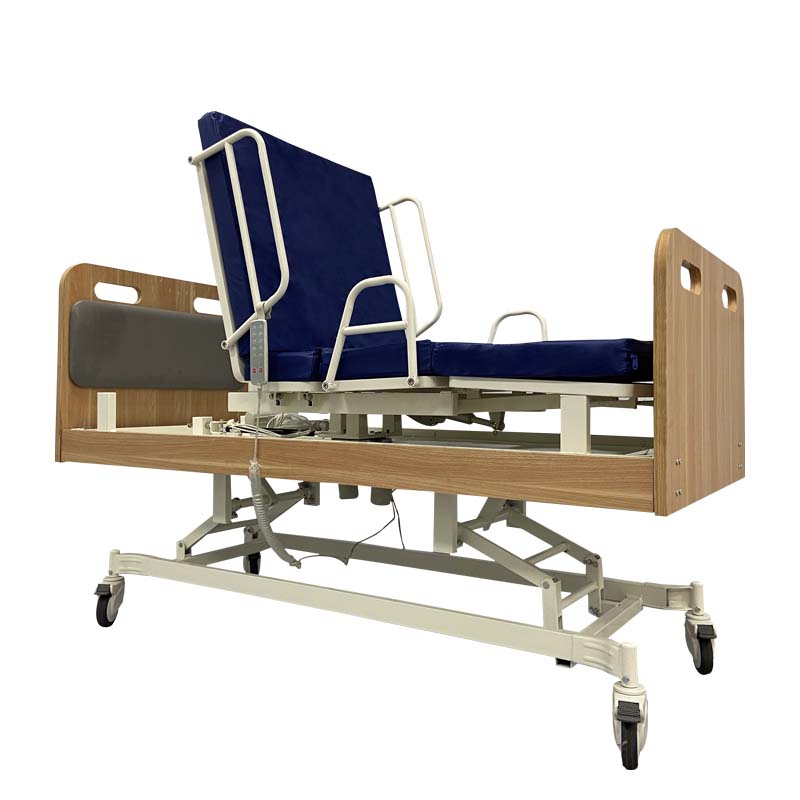

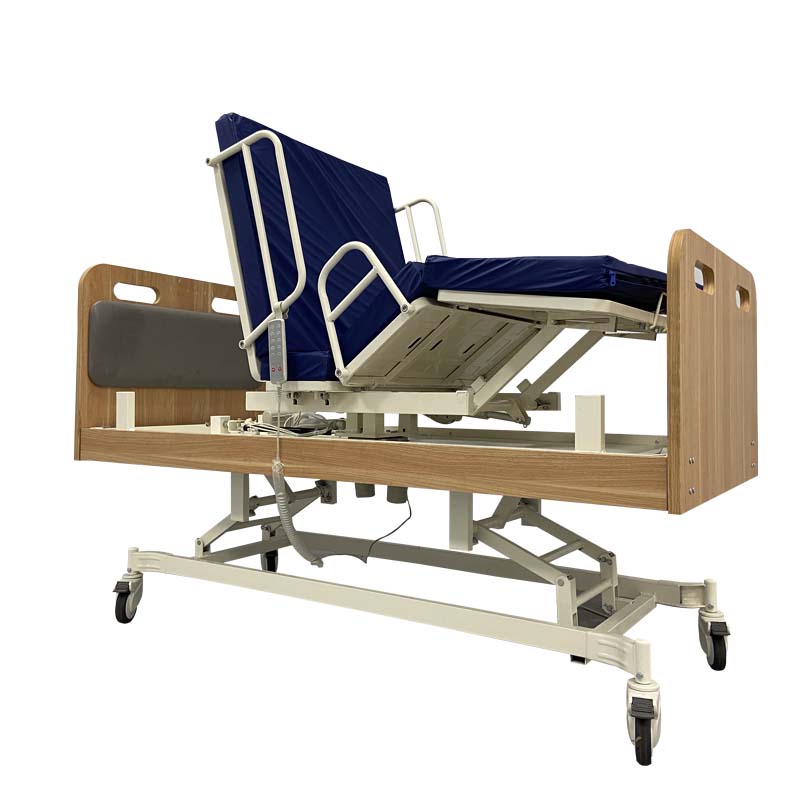

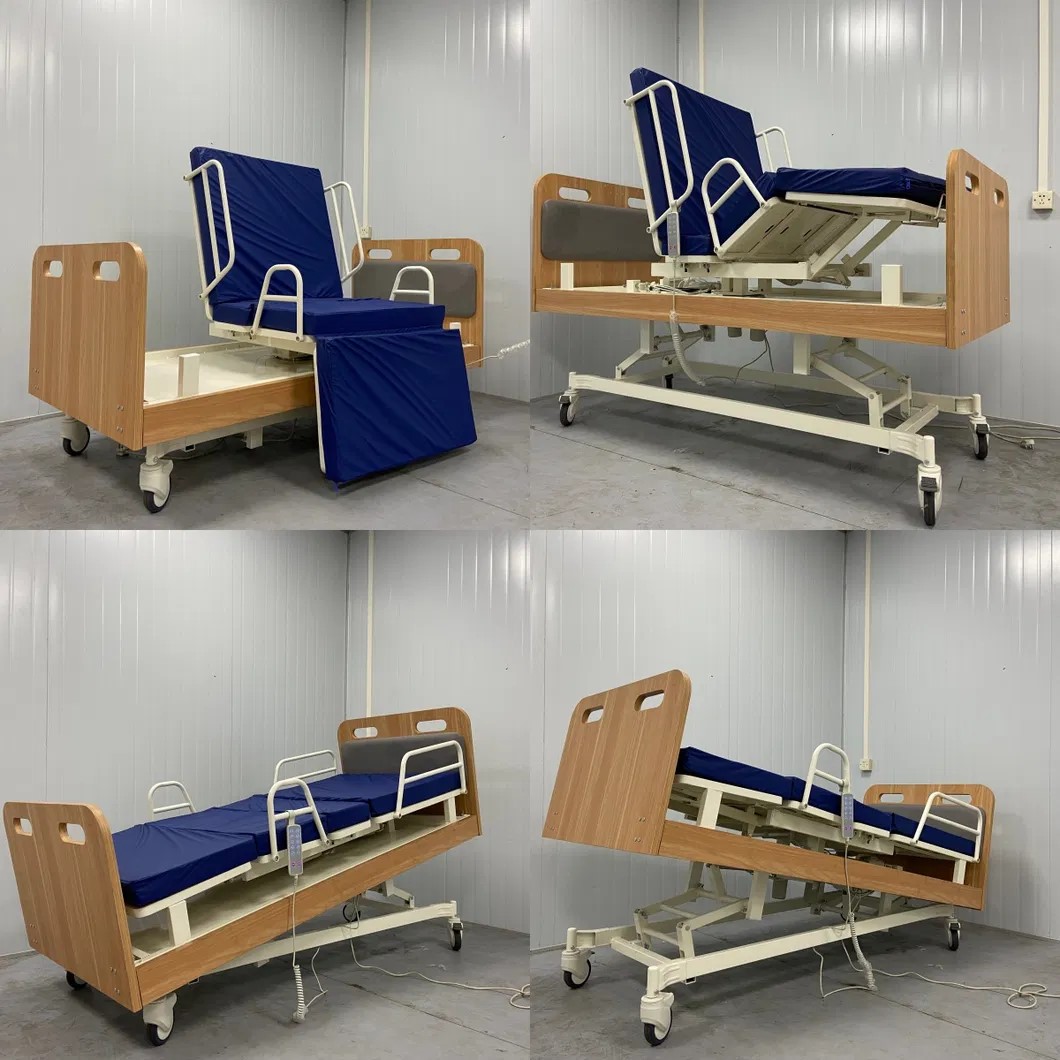

YK-E511 Electric home care bed

Technical parameters

•Size:L2050×W980×H490-760mm

•Hi-Low: 490-760mm

•Back section: 0-75°(±5°)

•Knee section: 0-40°(±5°)

•Trendelenburg: 0-12°; Reverse trendelenburg: 0-12°

•Safe Working Load: 240kg

Technical Configuration

•With MDF wooden head and foot board

•With 2pcs seel coating rails

•With 4pcs 5"deluxe wheels with brake

•With mattress, fabric cover, density 26

•With I.Vpole and urine hook

Specifications:

Name	Electric Five function Hospital Bed
Item No.	YK-Eh501
Outside size	2120980490-760MM<LWH>
Inside size of mattress base	L1950*W840mm
warranty	one year after shipment
Head and foot board	Quality Premium Adjustable Wooden head and foot board
Side rail	Steel
Motor brand	Linak/JieCang/Taiwan motor
Motor system	1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor, 1pc remote ,1pc control box.one plug.
Castors	5",individual lock system castors
Urine hooks	4 Urine hooks
Approval	ISO13485;CE
Raw material	Steel and MDF
Options	Dining Table; Mattress, Bedside cabinet.
Safe working load	The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 180kgs.
