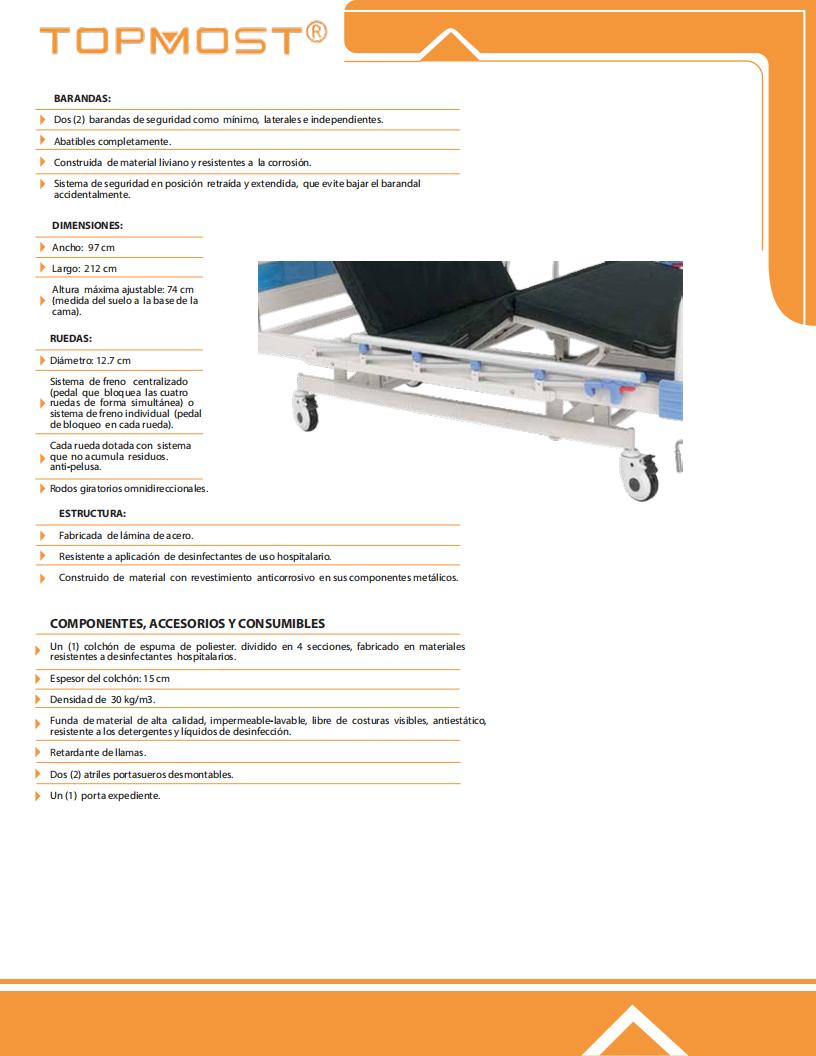

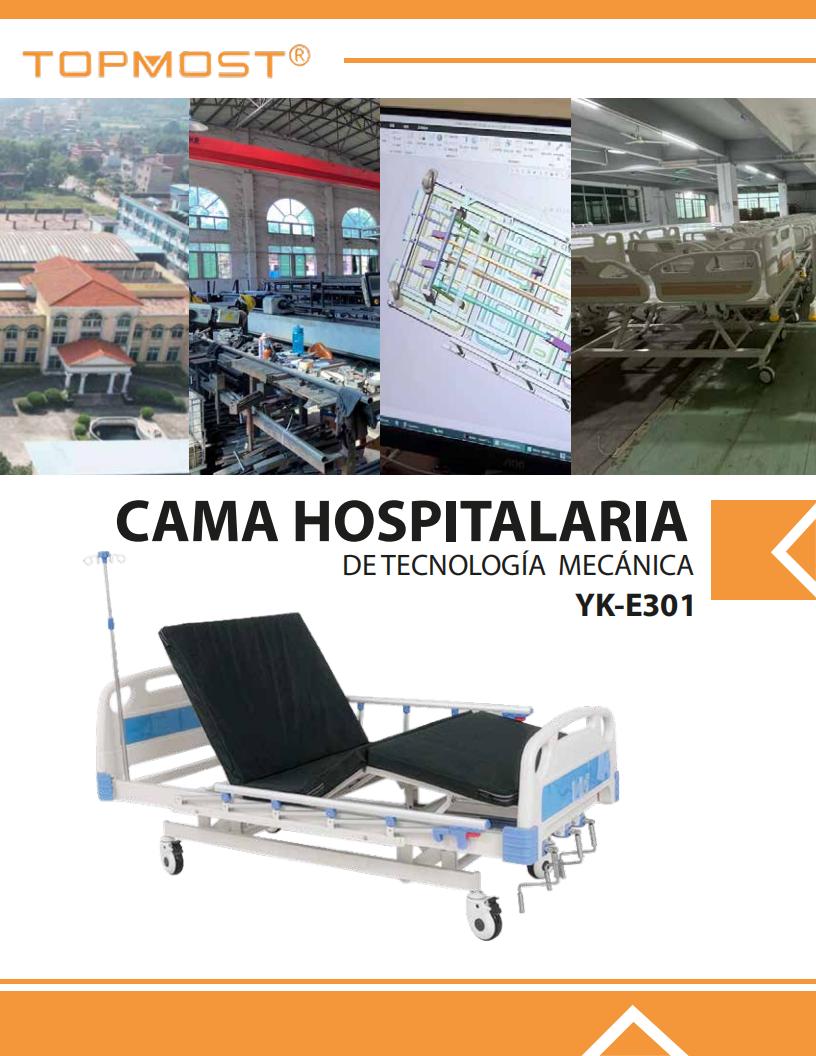

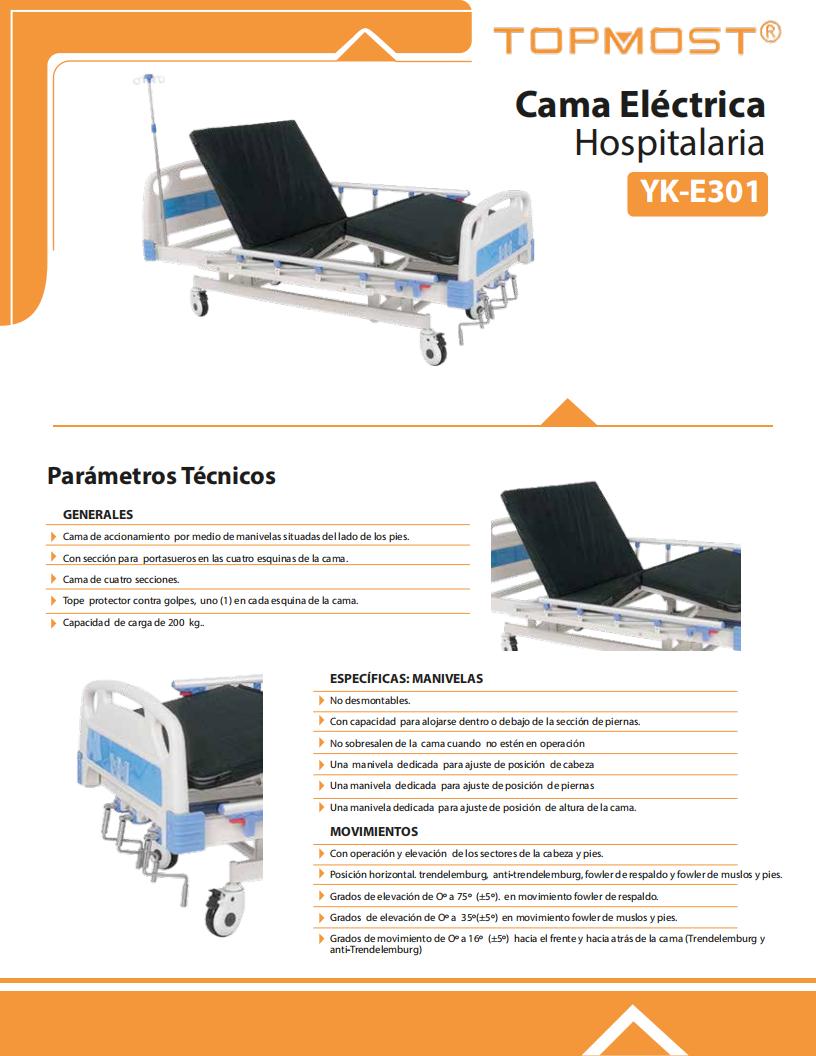

YK-E301 Three function Manual bed

Features：

• Simple structure with easy manual operation
• Manual adjustment for backrest and leg rest angles
• Suitable for general wards and care units
• Cost-effective and low maintenance
• Durable and safe for patients

Size:

2120×1030×450-700mm(L*W*H)

 Function:

• Back section: 0-75°(±5°)
•  Knee section: 0-35°(±5°)   Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating
• 4 pcs sleeping Platforms
• Detachable PP foot and head boards, blue cover color, with patient record holder
• 2 pcs Aluminum side rails, with 6pcs aluminum tube,  up and down to protect the patient not fall down from the bed
• Quiet and light  crank system provide reliable operation
• 4 pcs individual lockable castors at 4 cornors,  dia.125mm
• Bearing Capacity: 180kgs,270kgs
• Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes
