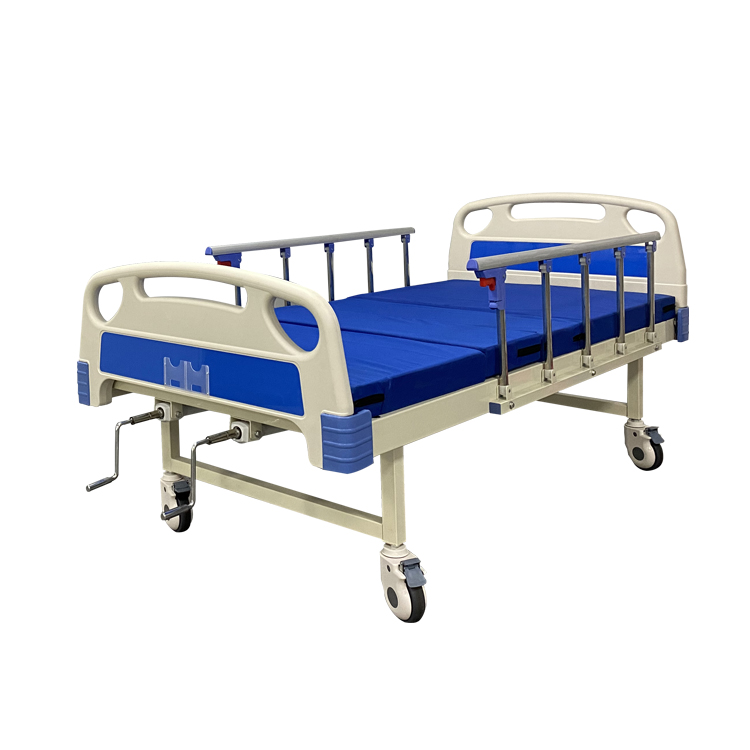

YK-M203Two function Manual bed
Features：
- Simple structure with easy manual operation
- Manual adjustment for backrest and leg rest angles
- Suitable for general wards and care units
- Cost-effective and low maintenance
- Durable and safe for patients
Size:
2120*970*500mm(L*W*H)
Function:

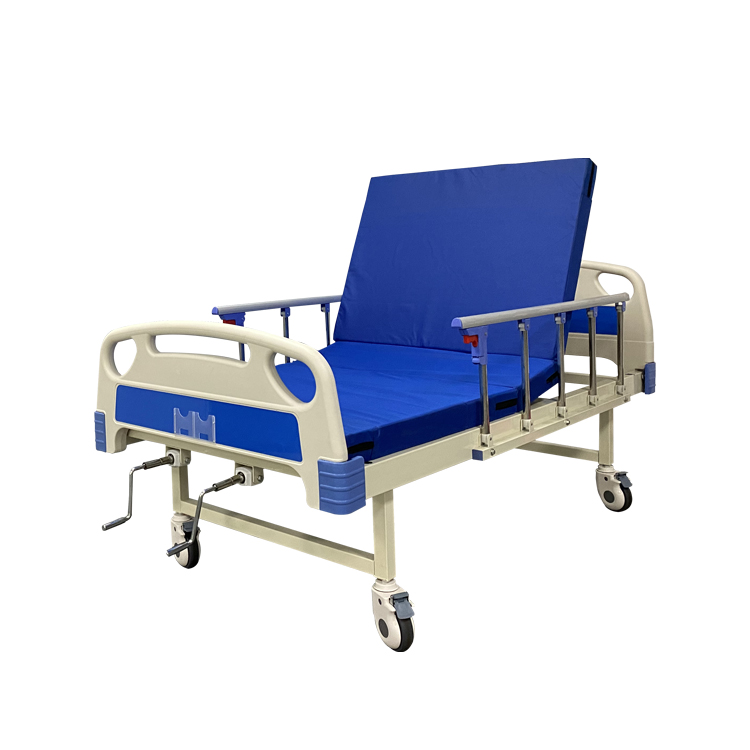

- Back section: 0-75°(±5°)
- Knee section: 0-35°(±5°) Frame: cold-rolled steel plate, stable, treated by electro-coating & powder-coating

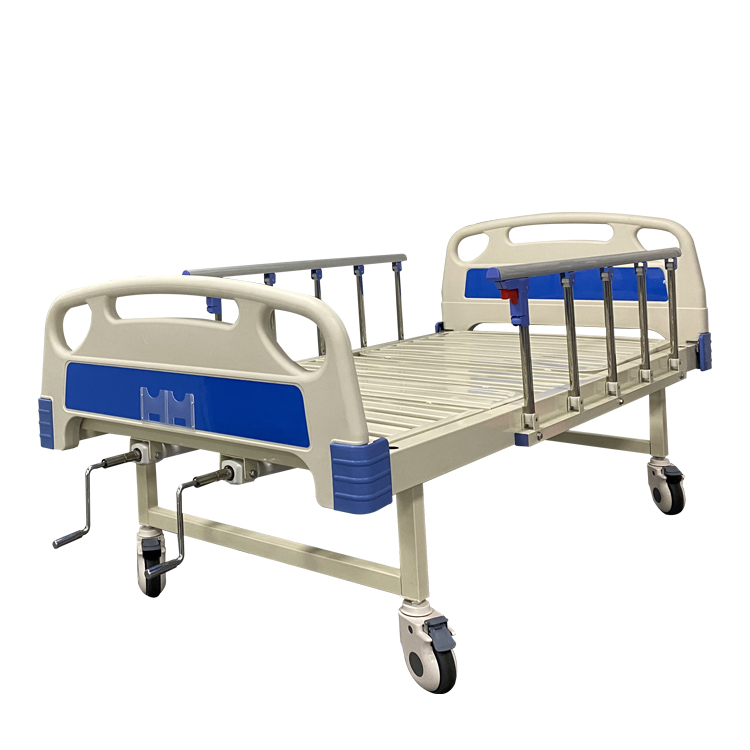

- 4 pcs sleeping Platforms
- Detachable PP foot and head boards, blue cover color, with patient record holder
- 2 pcs Aluminum side rails, with 6pcs aluminum tube, up and down to protect the patient not fall down from the bed
- Quiet and light crank system provide reliable operation
- 4 pcs individual lockable castors at 4 cornors, dia.125mm
- Bearing Capacity: 180kgs,270kgs
- Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes
|
Technical parameters
|
|
External dimension
|
2120×970×500mm
|
|
Backrest angle
|
80°
|
|
Footrest angle
|
45°
|
|
Height adjustment
|
NO
|
|
SWL-Safe working load
|
250kgs
|
|
Standard Accessories
|
|
Aluminum siderails
|
2pcs
|
|
125mm wheels
|
4pcs
|
|
S.S I.V Pole
|
1pc
|
|
ABS head and foot board
|
1pair
|
|
Drainage Hook
|
4pcs
|
|
ABS Crank
|
2pcs
|
Professional after-sales service：
- 100% quality inspection before shipment and issue test report.
- Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
- Strong research and development capabilities, support customization.
- The monthly production and delivery capacity is more than 3000 pieces.
- More than 10 years of sales experience, to provide you with professional advice.
- Integrity first, any product quality problems, full compensation unconditionally.
- One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
- The price of electric bed has an absolute advantage.
PARAMETERS TABLE
|
Technical parameters
|
|
External dimension
|
2120×970×500mm
|
|
Backrest angle
|
80°
|
|
Footrest angle
|
45°
|
|
Height adjustment
|
NO
|
|
SWL-Safe working load
|
250kgs
|
|
Standard Accessories
|
|
Aluminum siderails
|
2pcs
|
|
125mm wheels
|
4pcs
|
|
S.S I.V Pole
|
1pc
|
|
ABS head and foot board
|
1pair
|
|
Drainage Hook
|
4pcs
|
|
ABS Crank
|
2pcs
|
