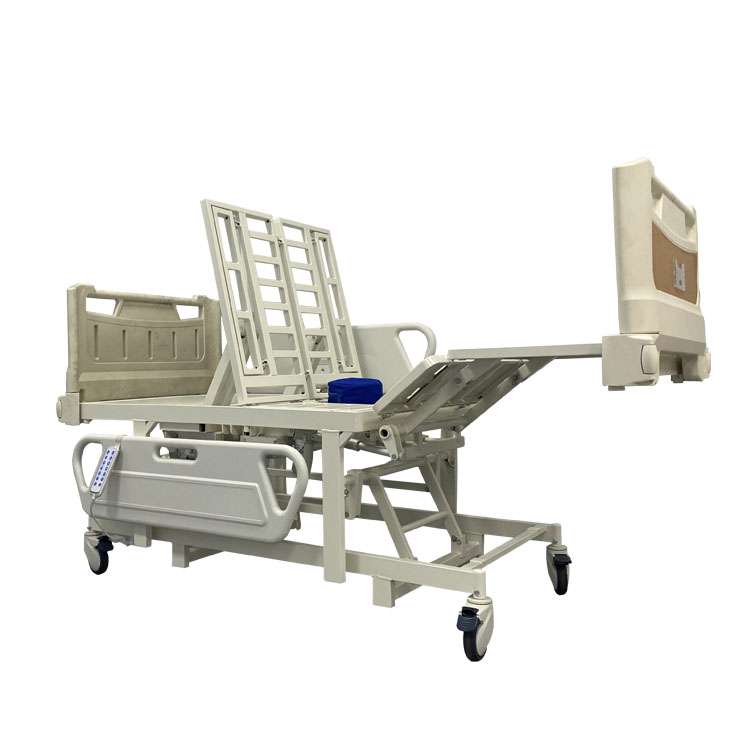

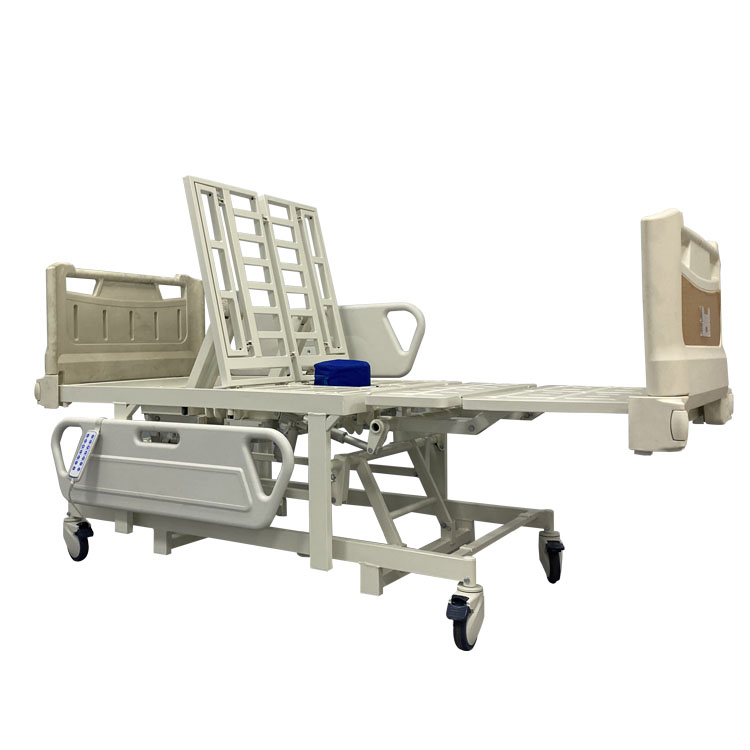

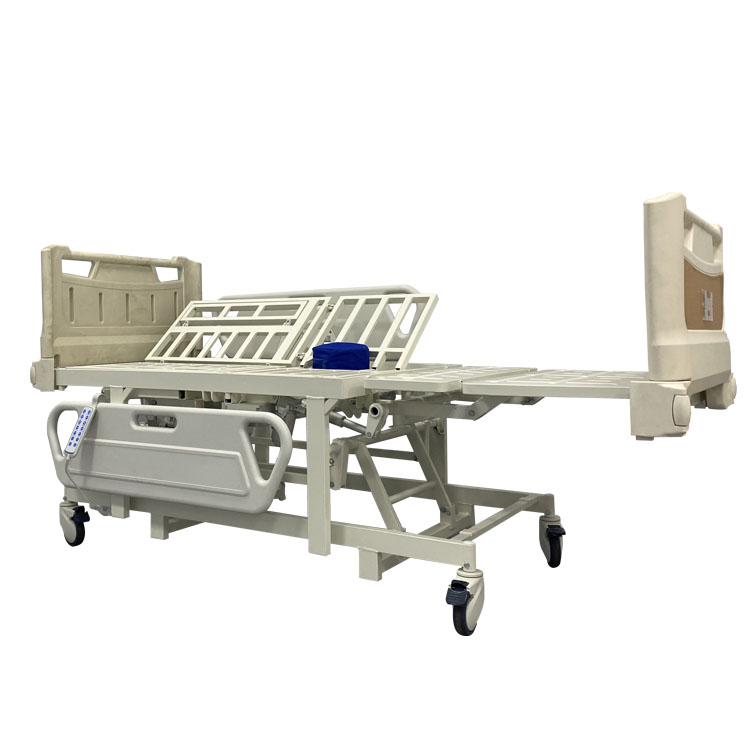

YK-512a Electric nursing bed

Features :

Nursing beds are designed with multiple adjustable functions, a stable structure, and user-friendly controls to support patient repositioning, backrest lifting, and daily care needs, enhancing both caregiver efficiency and patient comfort.

Size:

2200*980*525-740mm(L*W*H)

Function:

Backrest angle: 80°±5°
Kneerest angle: 40°±5°
Height adjustment: 525-740mm
Turn left: 0-30°
Turn right: 0-30°

Material:

cold-rolled steel plate, stable, treated by electro-coating & powder-coating

Features:

4 pcs sleeping Platforms
Detachable solid wooden foot and head boards
2pcs detachable Aluminum side rails ,with solide wooden side boards.
Quiet and robust electric actuators provide reliable operation
4 pcs central individual brake castors at 4 courners, dia.125mm
Motor brand: Taiwan /Chinese motor(4 motors,1 handset, 1 control box)
Bearing Capacity: 250kgs
Accessories: 1 pc SS height adjustable I.V pole; 4 pcs urine bag hooks; 4 pcs I.V holes

Specifications:

Name	Electric Five function Hospital Bed
Outside size	2200980525-740mm(LWH)
Inside size of mattress base	L1950*W840mm
warranty	one year after shipment
Head and foot board	Detachable MDF Wooden Head & foot board,with bumpers
Side rail	2pieces Aluminum side rail,
Motor brand	Linak/JieCang/Taiwan motor
Motor system	1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor, 1pc remote ,1pc control box.one plug.
Castors	5",individual lock system castors
Urine hooks	4 Urine hooks
Approval	ISO13485;CE
Raw material	Steel and ABS
Options	Dining Table; Mattress, Bedside cabinet.
Safe working load	The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 180kgs

Standard Accessories:

Head & foot board	1set
Guardrails	2pcs
Wheels	4pcs
Motors	4pcs
Remote	1pc
Urine hooks	4pcs
I.V. drip holes	4pcs
I.V. pole	1pc

Professional after-sales service：

100% quality inspection before shipment and issue test report.
Manufacturers with laser pipe cutting machines and Panasonic welding robots, Production automation reaches more than 60%.
Strong research and development capabilities, support customization.
The monthly production and delivery capacity is more than 3000 pieces.
More than 10 years of sales experience, to provide you with professional advice.
Integrity first, any product quality problems, full compensation unconditionally.
One-to-one VIP service, 365 days to receive messages, reply as soon as possible.
The price of electric bed has an absolute advantage.

PARAMETERS TABLE

Specifications:

Name	Electric Five function Hospital Bed
Outside size	2200980525-740mm(LWH)
Inside size of mattress base	L1950*W840mm
warranty	one year after shipment
Head and foot board	Detachable MDF Wooden Head & foot board,with bumpers
Side rail	2pieces Aluminum side rail,
Motor brand	Linak/JieCang/Taiwan motor
Motor system	1pcs back board motor ,1pc leg board motor ,1pc Hi-Lo motor, 1pc remote ,1pc control box.one plug.
Castors	5",individual lock system castors
Urine hooks	4 Urine hooks
Approval	ISO13485;CE
Raw material	Steel and ABS
Options	Dining Table; Mattress, Bedside cabinet.
Safe working load	The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 180kgs

Standard Accessories:

Head & foot board	1set
Guardrails	2pcs
Wheels	4pcs
Motors	4pcs
Remote	1pc
Urine hooks	4pcs
I.V. drip holes	4pcs
I.V. pole	1pc
